LOTC 5030A X-Ray Baggage Scanner
LOTC 5030A is a compact X-ray baggage scanner designed for efficient security screening of briefcases, hand luggage, and small to medium packages in various public locations. Featuring a 505x305mm tunnel and 10mm steel penetration, it ensures reliable threat detection.
LOTC 5030A is a high-performance X-ray baggage scanner that exemplifies LOTC’s commitment to superior security solutions. As a flagship product in LOTC’s security screening portfolio, the 5030A embodies the brand’s philosophy that “SECURITY STARTS HERE” by providing reliable, efficient, and user-friendly screening capabilities for various security applications.
Design and Construction
The LOTC 5030A features a compact yet robust design with dimensions of 1500mm (L) × 770mm (W) × 1100mm (H), making it suitable for installation in locations with space constraints. Despite its compact footprint, the unit offers a generous tunnel opening of 505mm (L) × 305mm (W), accommodating a wide range of baggage sizes and small to medium packages. The system’s sturdy construction supports a maximum conveyor load of 80kg, while maintaining a smooth operation with a conveyor speed of 0.22 m/s for efficient throughput.
Detection Capabilities
At the heart of the LOTC 5030A is its advanced detection system featuring 1024 channels in an L-shaped array configuration. This sophisticated detector arrangement enables exceptional imaging quality with impressive resolution capabilities:
- Wire Resolution: Capable of detecting copper wire as thin as 0.0787mm (AWG40)
- Spatial Resolution: 1.0mm diameter both horizontally and vertically
- Penetration: Able to penetrate up to 10mm steel panels, ensuring thorough inspection of dense items
The system utilizes an 80KV X-ray tube with adjustable current between 0.4-1.2mA, providing optimal imaging across various baggage densities while maintaining radiation safety with typical leakage levels of just 1.0 μGy/h.

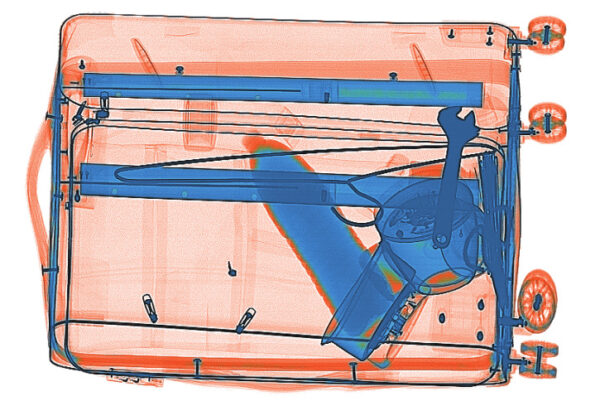

Image Processing and Storage
The LOTC 5030A incorporates advanced image processing technology that enhances threat detection capabilities while simplifying operator interpretation. The system can automatically store up to 50,000 images, providing extensive record-keeping capabilities for security operations. These images can be easily transferred to USB storage devices and converted to standard formats like JPG and BMP for documentation, training, or evidence purposes.
Applications
As a versatile security screening solution from LOTC, the 5030A is ideally suited for deployment across numerous environments including:
- Transportation hubs: subway stations, railway stations, bus terminals
- Border control points: customs, ports, and immigration facilities
- Commercial establishments: office buildings, shopping malls, hotels
- Public venues: factories, gyms, and other gathering places
LOTC Brand Commitment
The 5030A represents LOTC’s dedication to providing comprehensive security solutions that balance detection effectiveness, operational efficiency, and user experience. By choosing the LOTC 5030A, organizations demonstrate their commitment to implementing professional-grade security measures that protect people and assets while maintaining operational flow.
LOTC: SECURITY STARTS HERE
3. Technical Specifications
General Specifications
- Tunnel Size: 505 mm (L) x 305 mm (W)
- Penetration: 10 mm steel panel
- Conveyor Speed: 0.22 m/s
- Conveyor Max Load: 80 KGS
- Wire Resolution: Dia 0.0787 mm copper wire (AWG40)
- Spatial Resolution: Level: dia. 1.0 mm, Vertical: dia 1.0 mm
- Detector: 1024 Channels in an L-Shaped Array
- X-ray Leakage: Typical 1.0 μGy/h
X-Ray Generator
- Cooling / Housing: 100%
- X-ray Tube Voltage: 80 KV
- X-ray Tube Current (typical): 0.4-1.2 mA
- Beam Divergence / Beam Direction: 80°
Physical Specification
- Unit Size (mm): 1500 (L) x 770 (W) x 1100 (H)
- Gross Weight (kgs): 220
Image Archive
- Capacity: Up to 50,000 images stored automatically
- Transfer: Enable transferring to USB disk
- Format Conversion: Convert to JPG, BMP
Application
Suitable for security checking briefcases, hand luggage, parcel post, and small to medium-sized packages. Widely used in subway stations, railway stations, customs, ports, office buildings, shopping malls, hotels, factories, gyms, and other public places.
