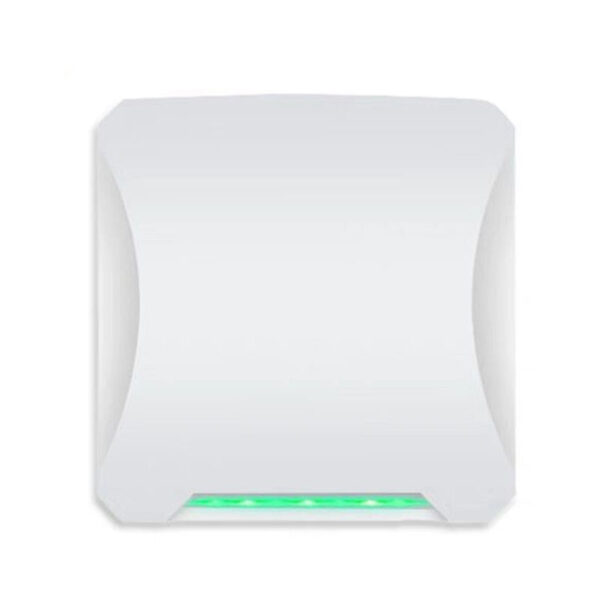

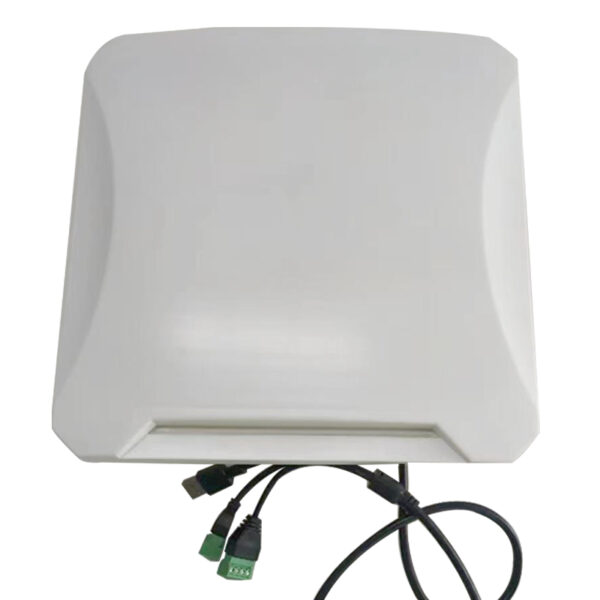

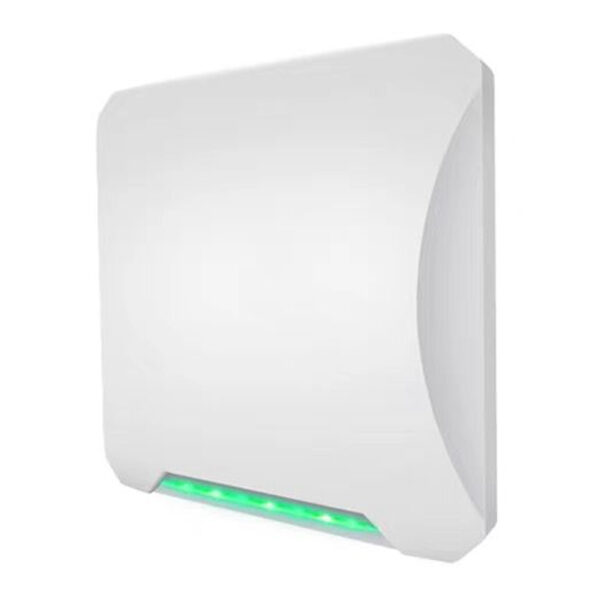

LOTC UHF-202415 UHF RFID Card Reader
LOTC UHF-202415 is a high-performance UHF RFID card reader with 15-meter long reading range, featuring 12dBi antenna, multiple interface options (RS485/Wiegand), and compatibility with ISO 18000-6C standard for advanced access control and asset management applications. SECURITY STARTS HERE.
Product Overview
The LOTC UHF-202415 is a fixed compact UHF RFID reader designed for long-range identification applications. Operating at frequencies of 902MHz~928MHz (American standard), this sophisticated reader combines exquisite appearance with outstanding reading and writing performance. The UHF-202415 represents the pinnacle of RFID technology, offering exceptional read distances and reliable performance for demanding security and management applications.
Technical Specifications
- Model Number: UHF-202415
- System Architecture: ARM7+E710 module
- Operating Frequency:
- National standard (920~925MHz)
- American standard (902~928MHz)
- European standard (865~868MHz)
- Other multinational frequency standards (customized)
- Recognition Distance: >25 meters
- Group Reading Performance: >500 tags simultaneously
- Tag Protocol: ISO18000-6C (EPC GEN2)
- RF Power: 0-33dBm (power software adjustable)
- Antenna Parameters: 8dBi circular polarization antenna (built-in)
- Supported Interfaces: Standard RS485, Wiegand26, Wiegand34, optional RJ45, GPRS
- Operating Voltage: +12V DC
- Recognition Prompt: Buzzer or LED flashing
- Power Consumption: <5W
- Operating Temperature: -20°C to +70°C
- Operating Humidity: 20% to 95% (no condensation)
- Storage Temperature: -40°C to +125°C
- Dimensions: 180x180x60mm or 265x185x70mm
- Net Weight: 550g
- Gross Weight: 1100g
Operating Modes and Features
- Frequency Hopping Mode: Frequency hopping (FHSS) or fixed frequency, configurable via software
- Operating Modes: Automatic mode, trigger mode, interactive mode
- Secondary Development: Provides dynamic link library (DLL) and demonstration software source code
- Special Features:
- Low power consumption with stable and reliable reading distance
- Fast data reading rate
- Tag wake-up recognition
- Multi-region multi-tag reading
- Multi-protocol compatibility
- Waterproof design for outdoor applications
Applications
The LOTC UHF-202415 RFID reader is ideal for a wide range of applications including:
- Logistics and Warehousing Management: Flow and warehousing management of goods, mail, parcels, and transport luggage
- Intelligent Parking Management: Parking lot management and charging automation
- Production Line Management: Identification of fixed points in production processes
- Product Anti-counterfeiting: Using the write protection function of tag memory to verify product authenticity
- Access Control Systems: High-security facility access management
- Asset Tracking: Real-time location and management of valuable assets
- Other Areas: Club management, library systems, student enrollment, consumption management, attendance tracking, dining management, and swimming pool access control
Key Benefits
- Extended Reading Range: Exceptional 15+ meter reading distance for flexible installation options
- High Capacity: Ability to read more than 500 tags simultaneously for efficient processing
- Versatile Connectivity: Multiple interface options to integrate with various control systems
- Adjustable Power: Software-configurable RF power for customized deployment scenarios
- Environmental Adaptability: Wide operating temperature range and waterproof design for indoor/outdoor use
- Easy Integration: Comprehensive development support for custom applications
Installation and Integration
The UHF-202415 is designed for straightforward installation and integration with existing security and management systems. Its multiple interface options allow for flexible deployment in various environments, while the adjustable power settings enable customization based on specific coverage requirements. The reader can be easily configured using the provided software tools, and comprehensive documentation supports efficient system integration.
LOTC SECURITY STARTS HERE with the UHF-202415 UHF RFID Reader, delivering professional-grade identification technology that meets the demanding requirements of modern access control and asset management applications.
