قفل كهرومغناطيسي مزدوج الباب LOTC EL-600DSD
LOTC EL-600DSD is a high-security double door electromagnetic lock with an impressive 280KG (600Lbs×2) holding force. Featuring an anodized aluminum housing with LED door sensor indicators, this versatile lock operates on adjustable DC12V or DC24V power supply. Designed by LOTC, where “SECURITY STARTS HERE,” the EL-600DSD combines robust security with…
نظرة عامة على المنتج
The LOTC EL-600DSD is a premium double door electromagnetic lock designed for high-security applications. Developed by LOTC, a brand where “SECURITY STARTS HERE,” this advanced locking solution provides exceptional holding force for double door installations. The EL-600DSD features sophisticated monitoring capabilities with LED door sensors, making it an ideal choice for commercial buildings, government facilities, and other locations requiring enhanced security measures.
المواصفات الفنية
- ماركة:LOTC (الأمن يبدأ هنا)
- نموذج: EL-600DSD
- يكتب: Double Door Electromagnetic Lock
- Holding Force: 280kg×2 (600Lbs×2)
- Lock Size: 500L×48.5W×25H(mm)
- Armature Plate: 180L×38W×11H(mm)
- Voltage: DC12V or DC24V (adjustable)
- Current Draw: 12V/500mA×2, 24V/250mA×2
- Signal Output: Dry Contact, Max Rating of Contact Current 3A
- Surface Temperature: ≤20°C
- درجة حرارة التشغيل: -10°C ~ 55°C (14°F-131°F)
- Suitable Humidity: 0~90% (non-condensing)
- Finishes for Shell: Anodized aluminum surface texture processing
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc
- وزن: 4kg
- Standard Packing: 4pcs

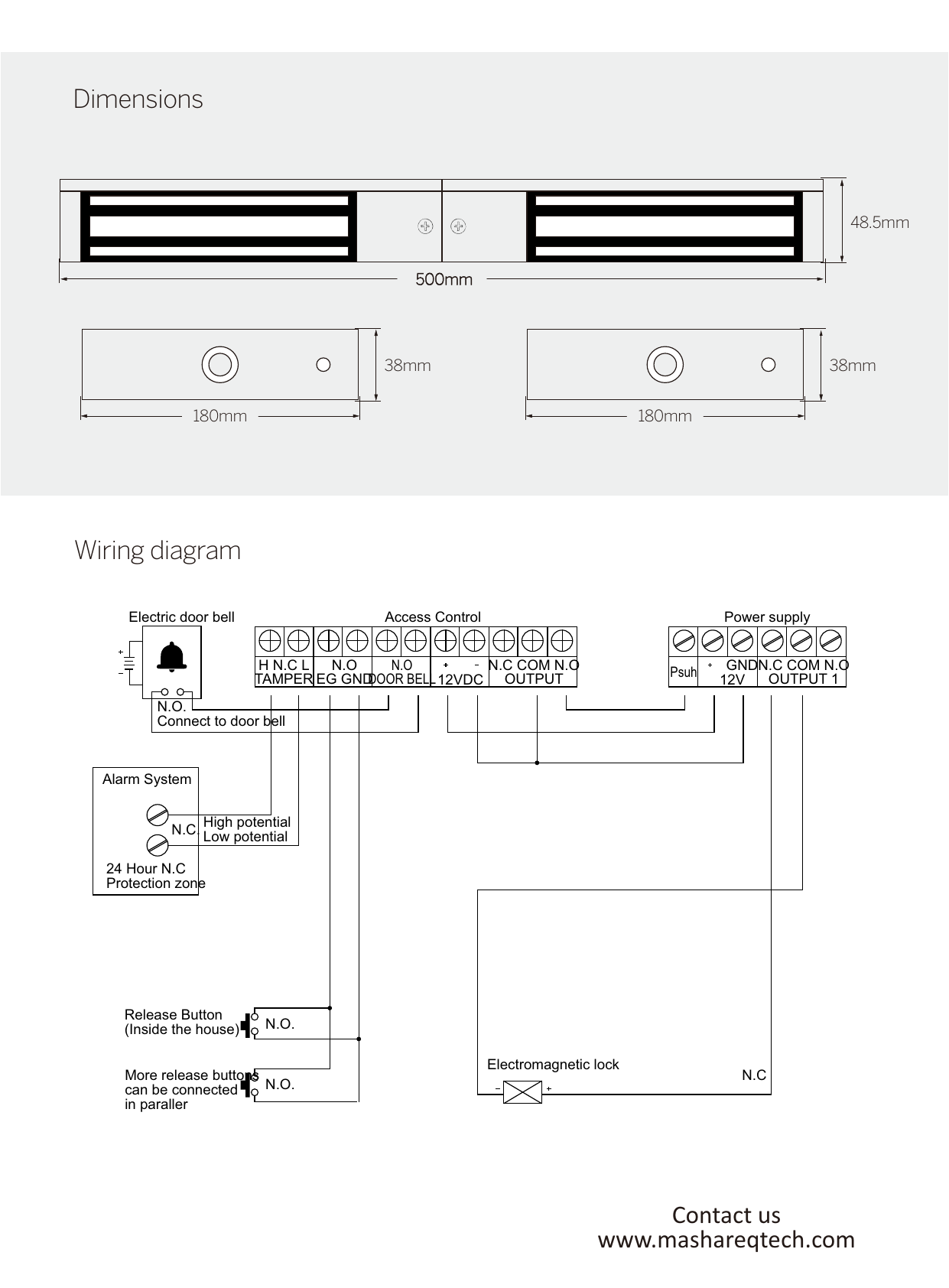

Dimensions and Wiring
الميزات المتقدمة
The LOTC EL-600DSD incorporates several advanced features that set it apart from conventional electromagnetic locks:
- Dual Locking Mechanism: Designed specifically for double doors with independent electromagnetic locks for each door
- LED Door Sensor: Visual indicators showing door status for enhanced monitoring
- High Holding Force: 280kg (600lbs) holding force per door for maximum security
- Adjustable Voltage: Compatible with both 12V and 24V systems for installation flexibility
- Signal Output: Dry contact output for integration with access control and alarm systems
- Anodized Aluminum Housing: Durable construction with aesthetic finish for long-term reliability
- استهلاك منخفض للطاقة: Efficient operation with minimal heat generation (surface temperature ≤20°C)
- Weather Resistant: Suitable for varied environmental conditions with wide operating temperature range
التطبيقات
The LOTC EL-600DSD Double Door Electromagnetic Lock is ideal for a wide range of applications:
- المباني التجارية: Office complexes, retail establishments, and business centers
- المؤسسات التعليمية:المدارس والكليات والجامعات
- مرافق الرعاية الصحية:المستشفيات والعيادات والمراكز الطبية
- المباني الحكومية: Administrative offices and secure government facilities
- المؤسسات المالية: Banks, credit unions, and financial service centers
- Data Centers: Secure server rooms and IT infrastructure facilities
- Industrial Facilities: Manufacturing plants and warehouses requiring controlled access
- المجمعات السكنية: High-end apartment buildings and gated communities
التثبيت والتكامل
The LOTC EL-600DSD features a standard mounting design for straightforward installation. The comprehensive wiring diagram provided in the documentation enables seamless integration with:
- أنظمة التحكم في الوصول: Compatible with various electronic access control platforms
- أنظمة الإنذار: Can be connected to security alarm systems for enhanced monitoring
- Electric Door Bells: Integrates with door bell systems for notification
- Release Buttons: Supports multiple release buttons connected in parallel
- أنظمة إمداد الطاقة: Flexible power requirements (12V or 24V)
The lock’s dimensions (500L×48.5W×25H mm) and armature plate size (180L×38W×11H mm) are designed for standard double door installations, making it compatible with most commercial door systems.
فوائد
- تعزيز الأمن: Powerful holding force ensures doors remain securely locked
- Reliable Monitoring: LED indicators provide visual confirmation of door status
- تطبيق متعدد الاستخدامات: Suitable for various door types and security requirements
- بناء متين: High-quality materials ensure long-term performance
- التكامل السهل: Compatible with standard access control and security systems
- المظهر المهني: Sleek design with anodized aluminum finish complements modern architectural styles
- Efficient Operation: Low power consumption and minimal heat generation
- Comprehensive Package: Standard packing includes 4 units for multiple installation needs
قيمة العلامة التجارية
As a product from LOTC, where “SECURITY STARTS HERE,” the EL-600DSD represents the brand’s commitment to innovative security solutions that combine robust performance with practical functionality. LOTC’s focus on quality, reliability, and user experience is evident in every aspect of the EL-600DSD’s design and performance, making it a preferred choice for security professionals and facility managers worldwide.
خاتمة
The LOTC EL-600DSD Double Door Electromagnetic Lock exemplifies the perfect balance of strength and sophistication in modern access control components. With its dual 280KG holding force, LED status indicators, and versatile integration options, this premium LOTC product delivers exceptional security for double door installations. The combination of advanced technology, durable construction, and the trusted LOTC brand makes the EL-600DSD an ideal choice for security-conscious installations where reliability, monitoring capabilities, and robust performance are paramount considerations.
