سلسلة حاجز الجناح LOTC TC-3207
LOTC TC-3207 Wing Barrier Series offers premium access control solutions available in both single-lane (TC-3207S) and dual-lane (TC-3207D) configurations. Featuring advanced ARM microprocessor control with digital positioning technology, these elegant 304 stainless steel barriers provide rapid 1-second opening times and efficient throughput management. With comprehensive security features including anti-tailgating detection,…
LOTC TC-3207 Wing Barrier Series represents the pinnacle of access control technology, where SECURITY STARTS HERE. Available in both single-lane (TC-3207S) and dual-lane (TC-3207D) configurations, these sophisticated barriers combine elegant design with advanced security features to deliver efficient access management for various applications. The sleek profile and premium construction make them ideal solutions for environments where both aesthetics and security are paramount.
التصميم والبناء
The TC-3207 series features meticulously crafted cabinets made from premium 304 stainless steel with a thickness of 1.2mm for the top cover and 0.8mm for the cabinet body. The manufacturing process employs precision CNC laser cutting and TIG welding techniques to ensure structural integrity and a flawless finish. The standard dimensions of 1200mm (L) × 300mm (W) × 980mm (H) create an imposing yet unobtrusive presence, while custom sizes are available to accommodate specific installation requirements.
The retractable barrier arms, extending 260mm when deployed, are available in various acrylic options (transparent, blue, or red) or as PU flexible barriers for enhanced safety. The standard passage width of 550mm provides comfortable access while maintaining security control.
Configuration Options:
- TC-3207S (Single): Features a single barrier unit ideal for standard access points with moderate traffic flow.

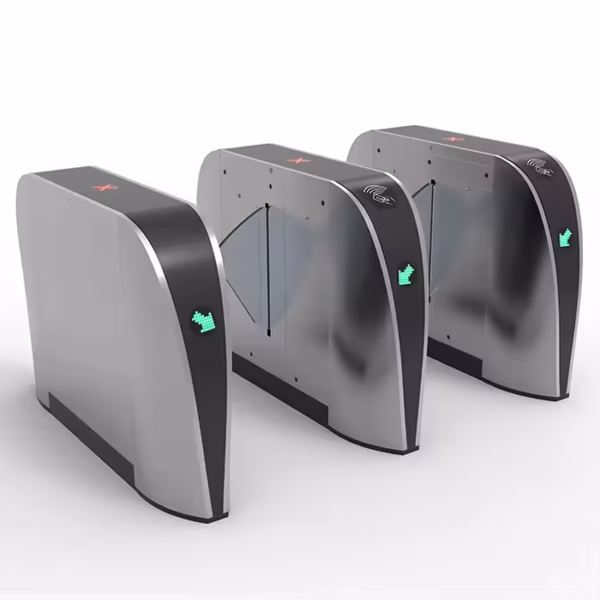

- TC-3207D (Double): Incorporates two synchronized barrier units creating a controlled passage corridor for efficient bi-directional traffic management in high-volume environments.
نظام التحكم المتقدم
At the heart of the TC-3207 series is a sophisticated ARM microprocessor control system with digital positioning technology that ensures precise, reliable gate operation. The system utilizes 24V brushless motors for smooth, quiet performance with minimal maintenance requirements. The barriers achieve an impressive opening/closing time of just 1 second, allowing for efficient throughput of:
- 25-30 people per minute in the single configuration (normally closed mode)
- 40-60 people per minute in the double configuration across both lanes
- Up to 40 people per minute in normally open configuration (single lane)
Intelligent Security Features
The TC-3207 series incorporates multiple security mechanisms to ensure controlled access:
- Precision Detection: High-precision sensors and intelligent algorithms accurately track personnel movement and direction, enhancing anti-tailgating capabilities.
- Comprehensive Anti-pinch Protection: Both mechanical and infrared anti-pinch features (4 standard pairs of sensors) prevent accidents, with the motor automatically stopping and resetting if resistance is encountered during operation. The minimal force application (≤2kg) ensures user safety.
- Anti-tailgating Measures: Advanced detection algorithms combined with audible and visual alarms deter unauthorized entry attempts.
- Anti-ramming Protection: The wing barriers automatically close if no valid opening signal is received, preventing forced entry.
- Auto-reset Functionality: The system automatically cancels passage authorization if the gate remains unused within a preset time period, with adjustable reset timing for optimal security.
Versatile Integration Capabilities
The TC-3207 series is designed for seamless integration with existing security infrastructure:
- Multiple Interface Options: Equipped with RJ45 and RS485/232 interfaces for flexible connectivity.
- Broad Compatibility: Works with various card readers (magnetic stripe, EMID, MIFARE1IC, TI) and supports multiple data formats (WIEGRAND26, WIEGRAND34, WIEGRAND66).
- Advanced Authentication Support: Compatible with QR code readers, fingerprint scanners, and facial recognition systems.
- System Integration: Easily integrates with access control, payment, ticketing, biometric, and ESD testing systems.
- Fire Safety Integration: Connects to fire alarm signals for fail-safe open passage in emergency situations.
User Experience
The TC-3207 series enhances the user experience through thoughtful design features:
- Voice Guidance: Smart voice prompts and sound effects provide intuitive user guidance.
- Visual Indicators: Clear visual cues indicate gate status and authorization.
- الاستجابة السريعة: The 1-second opening time minimizes wait times and prevents congestion.
- Power Failure Safety: Wing barriers automatically retract during power outages and close upon power restoration, ensuring security is maintained.
المواصفات الفنية
|
Specification
|
Details
|
|---|---|
|
Model Options
|
TC-3207S (Single), TC-3207D (Double)
|
|
Cabinet Material
|
304 stainless steel (powder-coated optional)
|
|
Material Thickness
|
Top Cover: 1.2mm, Cabinet: 0.8mm
|
|
Manufacturing Process
|
CNC laser cutting, TIG welding
|
|
Product Dimensions
|
1200mm (L) × 300mm (W) × 980mm (H) (Custom sizes available)
|
|
مزود الطاقة
|
AC220V ±10%
|
|
Control Voltage
|
DC24V
|
|
Drive Motor
|
24V brushless motor
|
|
Barrier Material
|
Acrylic (transparent, blue, red) / PU flexible barrier
|
|
Retractable Arm Length
|
260mm
|
|
Passage Width
|
550mm
|
|
Passage Direction
|
One-way or two-way (Configurable)
|
|
Operating Environment
|
Indoor, Outdoor (covered) -10°C to 50°C
|
|
الرطوبة النسبية
|
≤90%, non-condensing
|
|
Gate Opening/Closing Time
|
1 second
|
|
Passage Speed
|
TC-3207S: 25-30 people/minute (Normally Closed), 40 people/minute (Normally Open)<br>TC-3207D: 40-60 people/minute across both lanes
|
|
Power-up Time
|
5 seconds to enter service mode
|
|
Service Life
|
Over 3 million cycles
|
|
Auto-reset
|
System locks if unused within set time, with adjustable timing
|
|
Input Signal
|
Dry contact (preferred), 12V DC signal, or 12V pulse signal (pulse width >100ms), drive current >10mA
|
التطبيقات
The LOTC TC-3207 Wing Barrier Series is suitable for a wide range of applications:
General Applications
- Authorized Access Only: Corporate buildings, factories, cafeterias, golf courses, clubs, schools, hospitals, residential areas, construction sites, hotels, etc.
- Ticketed Venues: Tourist attractions, parks, gyms, swimming pools, stadiums, theaters, stations, docks, subways, airports, etc.
- High-security Areas: Government offices, private clubs, research institutes, financial institutions, ESD-controlled zones in electronic engineering, etc.
Configuration-Specific Applications
TC-3207S (Single) Best For:
- Smaller facilities with moderate traffic flow
- Secondary entrances and exits
- Space-constrained installations
- Budget-conscious deployments
- Single-direction traffic management
TC-3207D (Double) Best For:
- High-traffic environments requiring efficient people flow
- Major transportation hubs and terminals
- Large corporate headquarters and campuses
- Primary entrance points to large facilities
- Locations requiring simultaneous bi-directional traffic management
