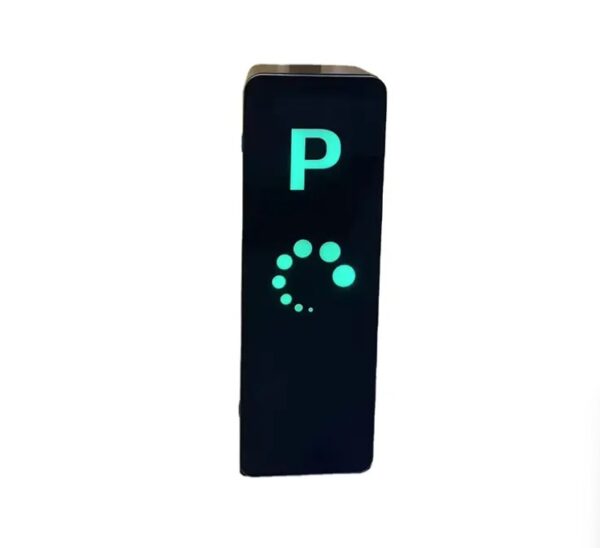

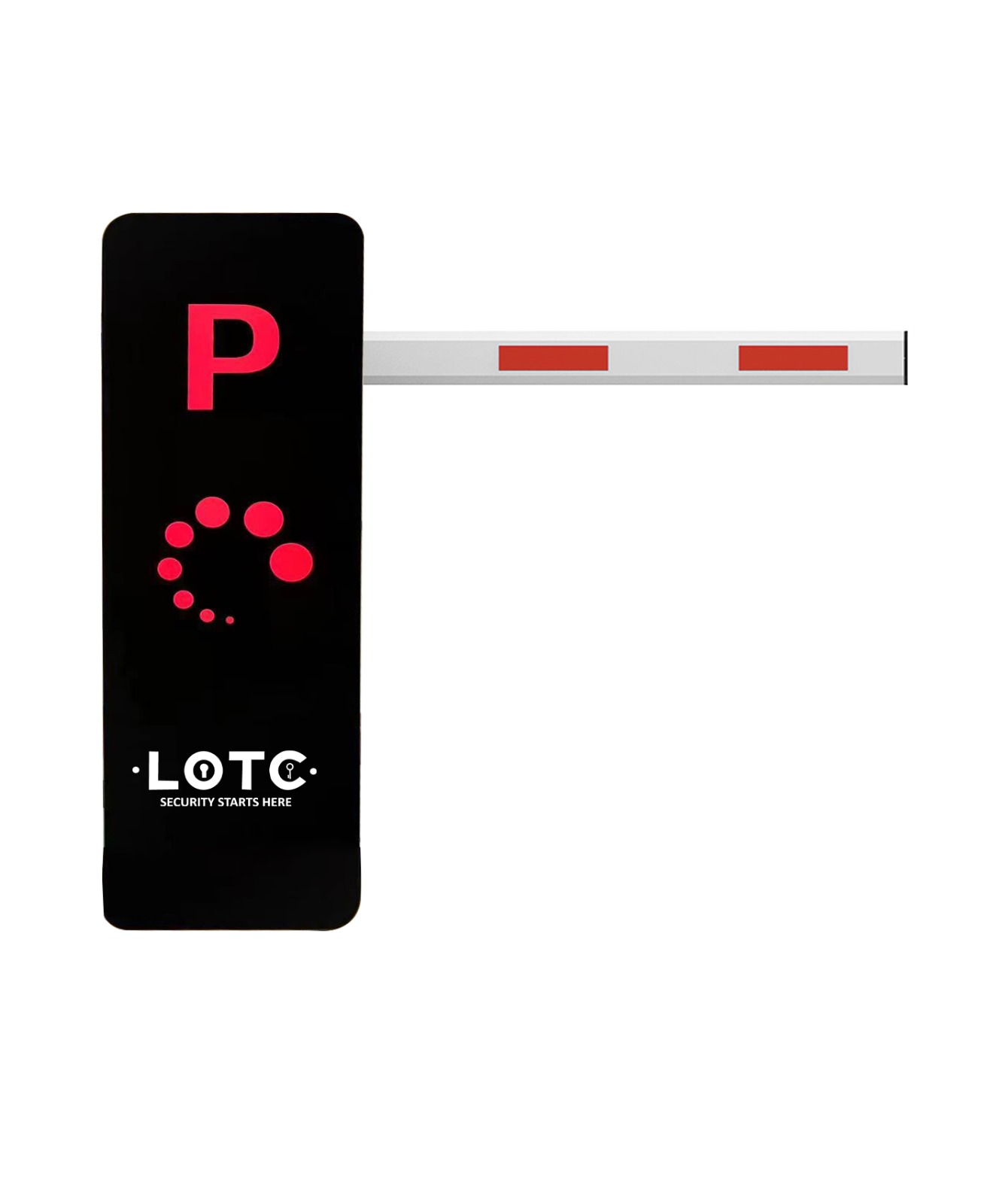

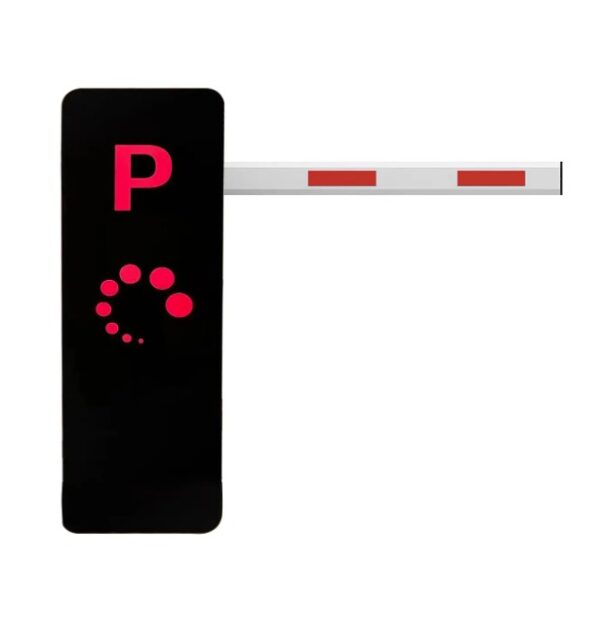

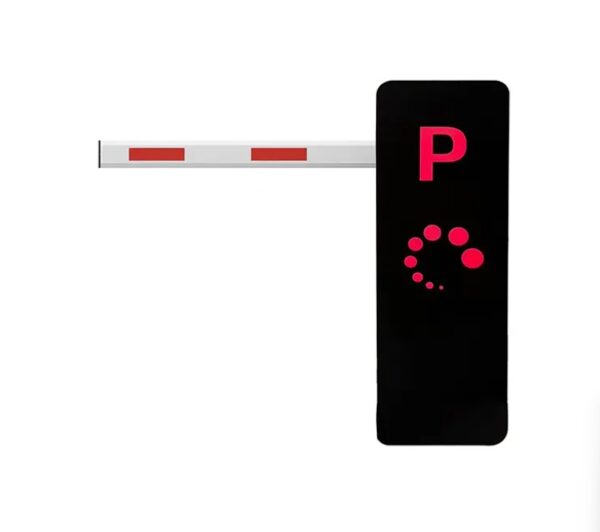

TC-1004 Boom Barrier
LOTC Boom Barrier is an advanced automatic entrance control system designed to regulate vehicle traffic and manage entry/exit points in parking lots, residential complexes, commercial facilities, and security zones. It features a durable powder-coated metal structure, high-efficiency 24V servo motor, and a microprocessor-based control system. The barrier provides opening and…
LOTC Boom Barrier is an advanced automatic control system specifically designed to regulate vehicle traffic and manage entry/exit points across various facilities. This barrier serves as an ideal solution for parking lots, residential complexes, commercial establishments, industrial areas, government institutions, and security zones that require precise control of vehicle movement.
Design and Structure
The Boom Barrier features a modern design with a robust structure made of 1.4mm thick galvanized metal with powder coating, providing high resistance to corrosion and various weather conditions. The control unit dimensions are 980×320×230mm, designed to allow easy installation and maintenance. The barrier includes a special SS 304 stainless steel floor fixing plate for secure mounting.
Operating System
The barrier operates with an integrated automatic system powered by a high-efficiency 24V servo motor, ensuring smooth and precise arm movement. It features opening and closing speeds ranging from 1.5 to 5 seconds, allowing smooth vehicle flow while maintaining a high level of security. The system consumes relatively low power at 150W and operates on a 230V AC power source with a frequency of 50-60 Hz.
Control Unit
The barrier is controlled through an advanced microprocessor-based control unit, providing high operational accuracy and advanced programming capabilities. The control unit allows adjustment of opening and closing speeds, automatic closing timing, and various safety settings. It also includes an emergency brake system for immediate stopping in emergency situations.
Multiple Operation Options
The Boom Barrier offers a variety of operation options to meet different user needs:
- Push button for manual operation
- Remote control for operation from a distance
- Loop detector (single and multi-channel) for automatic vehicle detection
- Photoelectric sensors for an additional level of safety
- Red/green illumination strip to indicate barrier status
- Radio Frequency Identification (RFID) system for secure access control
Safety Features
The barrier includes a range of advanced safety features:
- Emergency brake system for immediate stopping in emergency situations
- Manual open/close option in case of power failure
- Spring balancing system to ensure balanced arm movement
- 6A MCB (Miniature Circuit Breaker) to protect the system from current surges
Durability and Reliability
The Boom Barrier has an IP65 protection rating against dust and water, making it suitable for use in harsh outdoor environments. It is designed to operate in a wide temperature range from -30 to +70 degrees Celsius, ensuring reliable performance in various climatic conditions. The system has a long operational life of up to 10 million cycles, reflecting high manufacturing quality and long-term reliability.
Certifications
The product holds CE certification, confirming its compliance with European safety and quality standards.
Applications
The Boom Barrier can be used in a variety of applications:
- Public and private parking lots
- Residential and commercial complexes
- Industrial facilities
- Government and educational institutions
- Security and military zones
- Toll stations and gates
- Airports and ports
- Hospitals and healthcare centers
Technical Specifications of Boom Barrier
Basic Specifications
PropertySpecificationsMechanismAutomaticDrive24V Servo MotorOpening/Closing Time1.5 – 5 secondsPower Supply230V ACPower Consumption200WFrequency50-60 HzDuty Cycle100%Control UnitMicroprocessor BasedPhysical Specifications
PropertySpecificationsHousing Dimensions (mm)980×320×230Housing MaterialGalvanized steel with powder coatingMetal Thickness1.4 mmProtection DegreeIP65Temperature Range-30 to +70 degrees CelsiusOperation Options
PropertySpecificationsOperation MethodsPush Button, Remote Control, Loop detector (Single and Multi-channel), Photoelectric sensor, Red/Green illumination strip, Radio Frequency Identification (RFID)Power Failure OptionManual Open/CloseMain Components
No.Description1Top cover made of 1.4mm thickness sheet metal with powder coated2Housing made of 1.4mm thickness sheet metal with powder coated3Servo Motor4Spring for balancing boom5Control board6Boom holding plate7Emergency brake lever8MCB 6A9Floor fixing SS 304 plateCertifications and Reliability
PropertySpecificationsCertificationCE certificateMean Cycles Before Failure (MCBF)10 million Cycles
