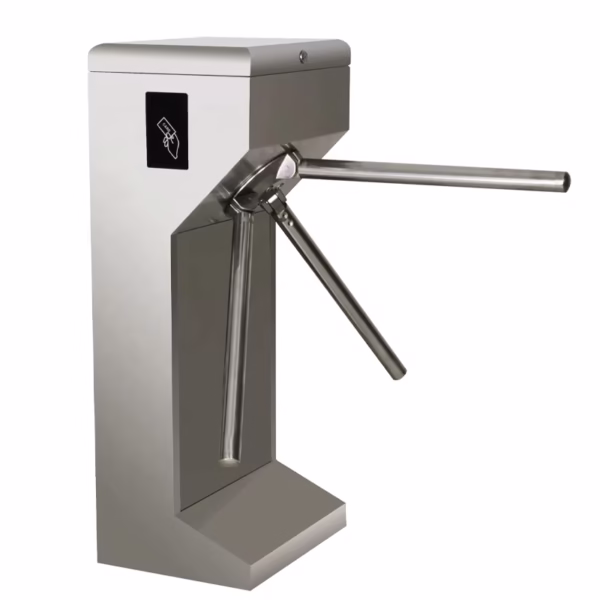

LOTC TC-3101 Three Roller Brake Turnstile
LOTC TC-3101 is a premium three roller brake turnstile from the “DC brushless/fast pass” series, featuring advanced ARM core microprocessor control with digital positioning technology. This compact security gate offers efficient access control with a sleek SUS304 stainless steel chassis measuring 420mm × 330mm × 985mm. Designed for versatility, the…
LOTC TC-3101 is a sophisticated three roller brake turnstile from the “DC brushless/fast pass” series, where SECURITY STARTS HERE. This compact yet powerful access control solution combines advanced technology with elegant design to deliver reliable performance in various environments.
Advanced Control System
The TC-3101 features a specialized ARM core microprocessor control system with digital positioning technology that ensures precise, smooth operation and accurate gate control. This intelligent system offers:
- Stable operation with minimal noise
- Simple and reliable structural design
- Durable surface treatment with anti-rust and anti-corrosion properties
- Sound and light alarm functions including tailgating detection
- Smart voice and sound prompts for user-friendly operation
- Control board with counting function and optional LCD/LED display
Design and Construction
The TC-3101 features a compact, space-efficient design with premium materials:
- Chassis material: SUS304 stainless steel for durability and elegant appearance
- Precise chassis dimensions: Length 420mm × width 330mm × height 985mm
- Door wing material: SUS304 stainless steel for long-lasting performance
- Channel width: 550mm providing comfortable passage while maintaining security
Performance Specifications
The TC-3101 delivers consistent performance metrics:
- Opening and closing speed: Maximum 0.5 seconds (user adjustable)
- Traffic flow handling: 30-45 persons/minute
- Automatic reset if not used within the specified time
- Input voltage: 110V-220V/50Hz for global compatibility
Security Features
The TC-3101 incorporates comprehensive security mechanisms:
- Anti-tailgating detection to prevent unauthorized access
- The channel opens automatically after power failure and closes automatically when power is restored
- Anti-impact function that automatically locks the swing arm when no opening signal is received
- Automatic reset functionality that cancels user permissions if not used within the specified timeframe
Integration Capabilities
The TC-3101 is designed for seamless integration with various systems:
- Compatible with access control systems
- Supports card recognition
- Face recognition capability
- Code/QR recognition support
- Integration with ticketing systems
- Customizable for multi-function applications
- Compatible with electronic ticket systems and biometric identification systems
- Consumption system integration
Technical Specifications
- Chassis material: SUS304 stainless steel
- Chassis dimensions: Length 420mm × width 330mm × height 985mm
- Door wing material: SUS304 stainless steel
- Channel width: 550mm
- Input voltage: 110V-220V/50Hz
- Opening and closing speed: Maximum 0.5 seconds (user adjustable)
- Traffic flow rate: 30-45 persons/minute
- Usage environment: Indoor/outdoor (sheltered)
- Ambient temperature: -25°C to 70°C
Applications
The LOTC TC-3101 is ideal for a wide range of environments:
- Office buildings and corporate environments
- Educational institutions and school libraries
- Enterprises and institutions requiring import and export tracking
- Attendance monitoring facilities
- Access control points
- Consumption management systems
- Special channel management areas
- Subway stations and transportation hubs
- Tourist attractions and exhibition venues
- Community access points
- Factories and industrial facilities
- Construction sites
- Fitness clubs and recreational facilities
Comparison with TC-3106
While sharing the same technological platform and core features as the TC-3106, the TC-3101 offers a more compact footprint with its 420mm × 330mm × 985mm dimensions, making it particularly suitable for installations where space efficiency is a priority, while still maintaining the same channel width of 550mm and performance capabilities.
