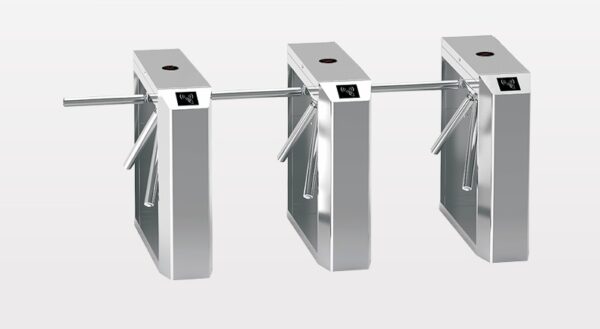

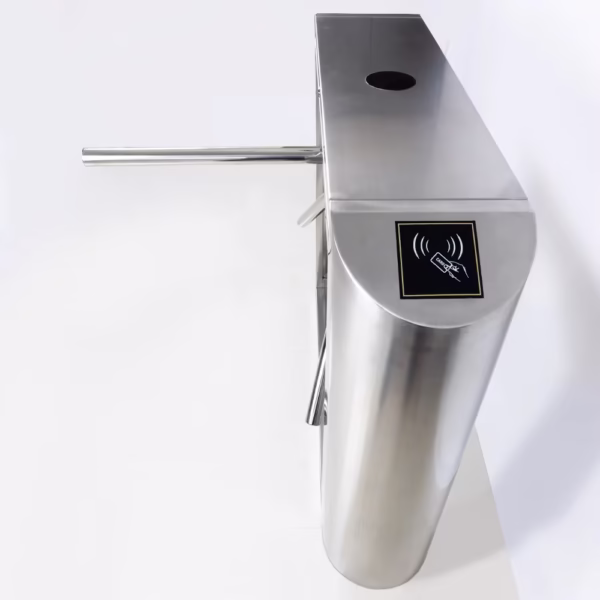

LOTC TC-3106 Three Roller Brake Turnstile
LOTC TC-3106 is a premium three roller brake turnstile from the “DC brushless/fast pass” series, featuring advanced ARM core microprocessor control with digital positioning technology. This sleek security gate offers rapid 0.2-second identification response time and accommodates high traffic flow of up to 45 persons per minute. Designed with durability…
LOTC TC-3106 is a high-performance three roller brake turnstile from the “DC brushless/fast pass” series, where SECURITY STARTS HERE. This sophisticated access control solution combines advanced technology with robust construction to deliver exceptional performance in high-traffic environments.
Advanced Control System
The TC-3106 features a specialized ARM core microprocessor control system with digital positioning technology that ensures precise, smooth operation and accurate gate control. This intelligent system offers:
- Stable operation with minimal noise
- Simple and reliable structural design
- Durable surface treatment with anti-rust and anti-corrosion properties
- Sound and light alarm functions including tailgating detection
- Smart voice and sound prompts for user-friendly operation
- Control board with counting function and optional LCD/LED display
Performance Specifications
The TC-3106 delivers impressive performance metrics:
- Ultra-fast 0.2-second identification switch response time
- High-capacity traffic flow handling of 45 persons per minute
- Extended service life of 5 million uses
- Automatic reset if not used within the specified time (standard reset after 5 seconds)
Security Features
The TC-3106 incorporates comprehensive security mechanisms:
- Anti-tailgating detection to prevent unauthorized access
- The channel opens automatically after power failure and closes automatically when power is restored
- Anti-impact function that automatically locks the swing arm when no opening signal is received
- Automatic reset functionality that cancels user permissions if not used within the specified timeframe
Integration Capabilities
The TC-3106 is designed for seamless integration with various systems:
- Compatible with access control systems
- Supports card recognition
- Face recognition capability
- Code/QR recognition support
- Integration with ticketing systems
- Customizable for multi-function applications
- Compatible with electronic ticket systems and biometric identification systems
- Consumption system integration
Technical Specifications
- Chassis material: SUS304 stainless steel
- Chassis dimensions: Length 1200mm × width 280mm × height 980mm
- Door wing material: SUS304 stainless steel
- Channel width: 550mm
- Input voltage: 110V-220V/50Hz
- Opening and closing speed: Maximum 0.5 seconds (user adjustable)
- Identification response time: 0.2 seconds
- Traffic flow rate: 30-45 persons/minute
- Service life: 5 million uses
- Usage environment: Indoor/outdoor (sheltered)
- Ambient temperature: -25°C to 70°C
- Reset time: 5 seconds (standard)
Applications
The LOTC TC-3106 is ideal for a wide range of high-traffic environments:
- Subway stations and transportation hubs
- Docks and terminals
- Tourist attractions and exhibition venues
- Community access points
- Factories and industrial facilities
- Construction sites
- Office buildings and corporate environments
- Educational institutions
- Fitness clubs and recreational facilities
- Venues requiring attendance tracking
- Locations needing consumption management
- Areas requiring special channel management and access control
