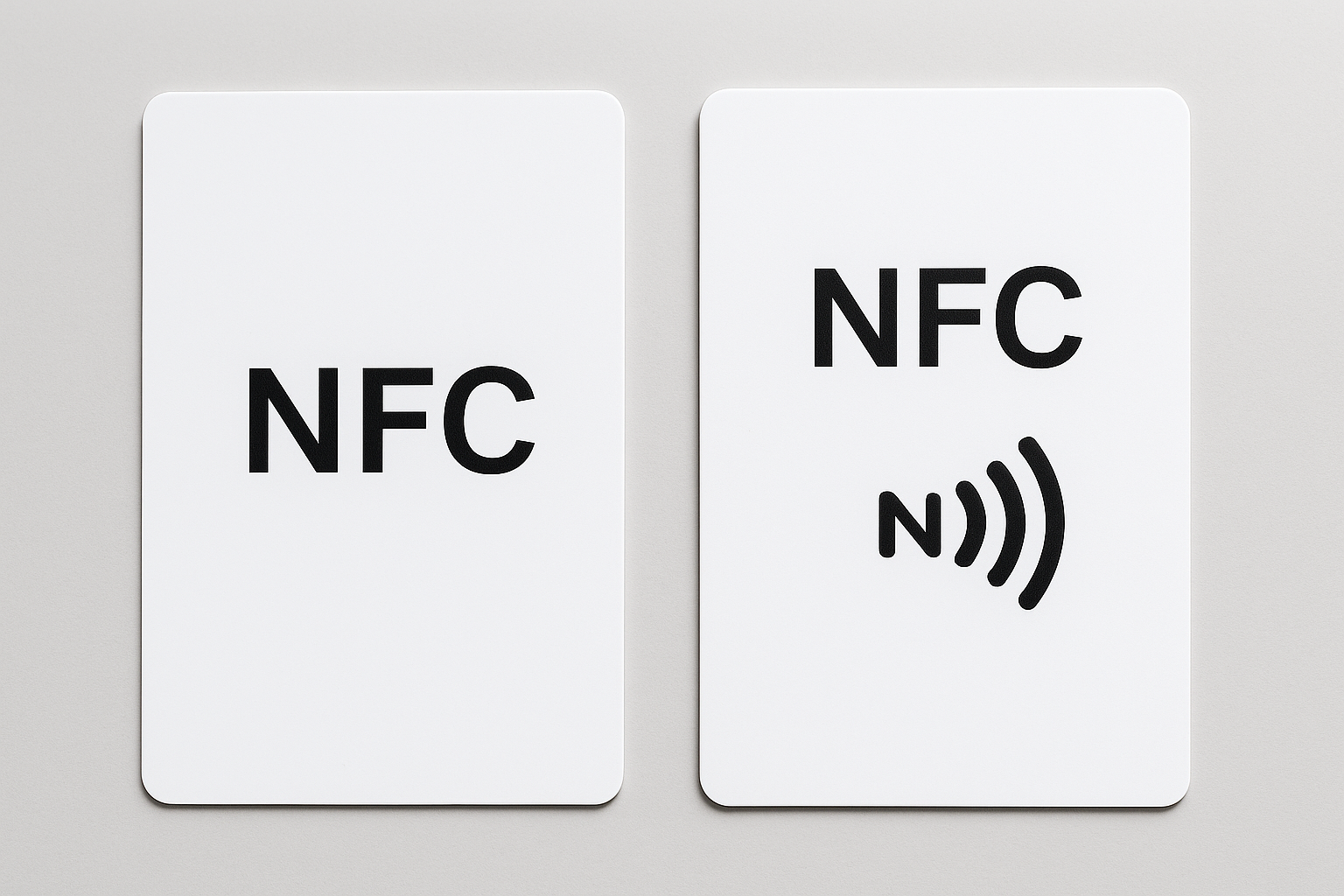

NFC NTAG Series Cards
NFC NTAG Series cards are high-frequency (13.56 MHz) contactless smart cards designed for a wide range of mass-market applications. These cards feature various EEPROM memory sizes, providing storage flexibility to meet diverse needs. The cards comply with the ISO/IEC 14443-A standard and offer enhanced security for data transfer, along with…
Technical Specifications
NFC NTAG Series cards are manufactured by NXP Semiconductors and operate at 13.56 MHz. These cards primarily differ in EEPROM memory size and endurance (number of scans):
•NTAG213: 144 bytes (usable) memory, up to 50,000 scans endurance.
•NTAG215: 504 bytes (usable) memory, up to 100,000 scans endurance.
•NTAG216: 888 bytes (usable) memory, up to 100,000 scans endurance.
Each card features a 7-byte Unique Identifier (UID) and supports data transfer rates up to 106 kbps with a reading range of up to 10 cm depending on the reader.
Key Features
•Memory: Available in various EEPROM memory sizes (144 bytes, 504 bytes, 888 bytes) to suit diverse storage requirements.
•Security: Built-in encryption for secure data transfer.
•Communication: ISO/IEC 14443-A compliant protocol.
•Physical Specifications: Standard CR80 size (85.6 mm × 54 mm × 0.8 mm).
•Material: Durable, waterproof PVC suitable for card printing.
•Packaging: Available in bulk packaging to meet large-scale deployment needs.
Applications
NFC NTAG Series cards are widely used in various applications:
•Access control systems for buildings and secured areas.
•Public transportation ticketing.
•Loyalty and membership programs.
•Cashless payment systems.
•Event ticketing.
•Student and employee identification.
•Smart marketing and interactive tag applications.
Advantages
•Versatility: Compatible with numerous RFID readers and systems.
•Printability: Supports direct printing using dye-sublimation or thermal transfer printers.
•Cost-Effectiveness: Economical solution for large-scale deployments.
•Reliability: Proven technology with widespread industry adoption.
•No Power Required: Passive design draws power from the reader’s electromagnetic field.
•Ease of Use: Easy to program and use with NFC-compatible smartphones and devices.
