TC-1106
LOTC offers robust Single-Lane and Dual-Lane Cross-Rotation Gates, designed for secure and orderly pedestrian access control. These stainless steel turnstiles integrate seamlessly with various read/write devices, ensuring reliable performance and durability for both indoor and outdoor environments. LOTC: SECURITY STARTS HERE.
LOTC proudly presents its Single-Lane and Dual-Lane Cross-Rotation Gates, engineered to provide robust, reliable, and intelligent pedestrian access control. Embodying our principle, “SECURITY STARTS HERE,” these turnstiles are an ideal solution for managing and securing entry and exit points in a variety of indoor and outdoor environments.
Product Overview: The LOTC Cross-Rotation Gates (available in Single-Lane and Dual-Lane configurations) are sophisticated devices that seamlessly integrate mechanical precision, advanced electronic control, microprocessor intelligence, and compatibility with diverse read/write technologies. By configuring these gates with various card readers (such as Barcode, ID, or IC cards), and incorporating dependable safety protection mechanisms, real-time alarm systems, and clear directional indicators, they achieve highly effective and intelligent control and management of passageways.
Constructed from high-quality stainless steel with a stamped and formed design, these gates are not only aesthetically elegant but also exceptionally resistant to rust and built for long-lasting durability. They feature standard external electrical interfaces, simplifying the integration of various access control peripherals. This allows for a civilized and orderly passage for authorized individuals while effectively preventing unauthorized access. Furthermore, the system is thoughtfully designed with fire safety requirements in mind. In emergency situations, the gates ensure unimpeded passage to facilitate the swift and safe evacuation of personnel.

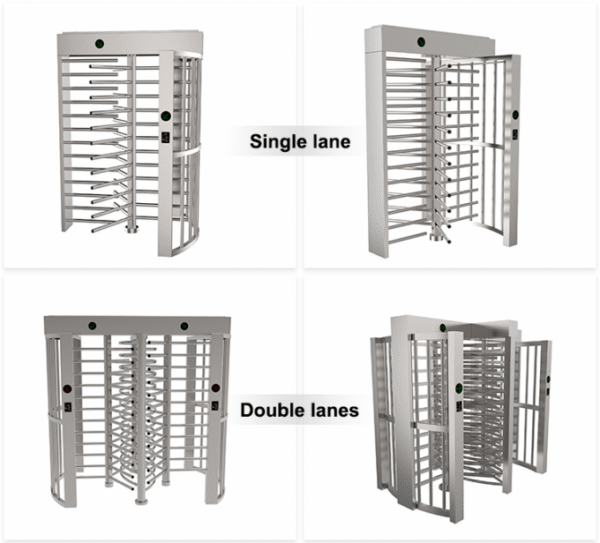

Available Configurations:

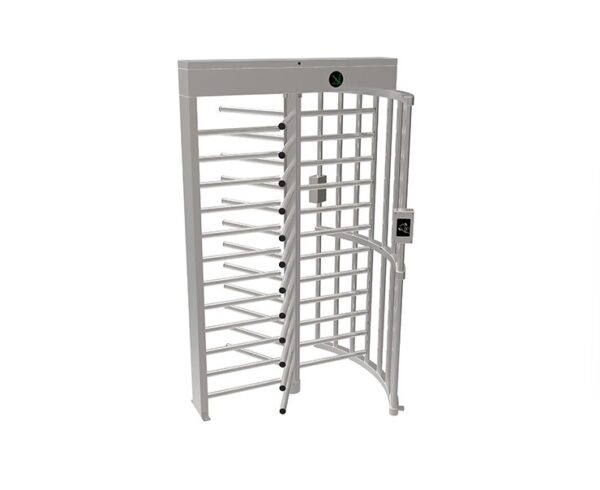

- LOTC Single-Lane Cross-Rotation Gate: Designed for controlled passage in one lane. Ideal for locations with moderate pedestrian flow or where space is a consideration.

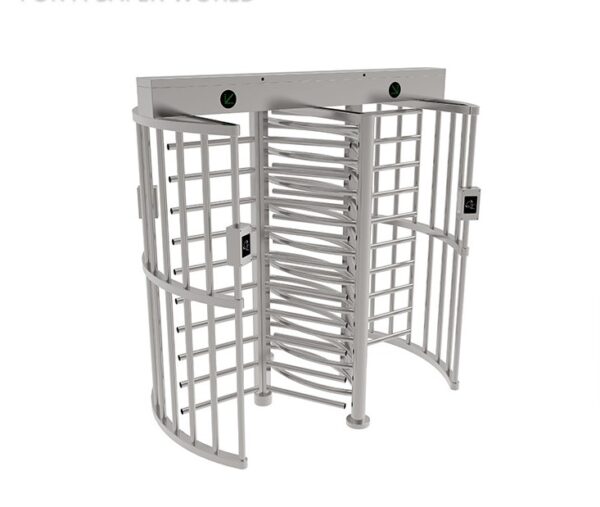

- LOTC Dual-Lane Cross-Rotation Gate: Designed for higher throughput, managing two parallel lanes of pedestrian traffic. This configuration is suitable for busier locations requiring more efficient access control for larger numbers of people. (While the provided document details the single-lane version, the dual-lane version would typically offer similar core functionalities and construction, with an expanded frame to accommodate two rotation mechanisms and potentially higher power requirements for the dual drive systems.)
Key Functional Features (Applicable to both Single-Lane and typically Dual-Lane models):
- Self-Diagnosis Function: Equipped with a self-diagnosis capability for straightforward maintenance and user convenience.
- Multiple Working Modes: Offers a variety of operational modes, including: restricting both directions after card reading, allowing card reading on one side while restricting the other, or permitting free passage on one side after card reading.
- Emergency Fire Safety Compliance: Supports dual-way free passage when power is off and automatically locks upon power restoration. This critical feature facilitates rapid personnel evacuation during emergencies, aligning with fire safety regulations.
- User-Friendly Operation: After a valid card is read, pedestrians only need to gently push the turnstile to pass. The mechanism automatically resets, with each rotation typically being 90 degrees for bidirectional passage.
- Precision Drive System: Utilizes a unique and reliable drive system for accurate locking and unlocking of the turnstile at its zero position.
- Easy System Integration: Features a uniform and standard external electrical interface, allowing for easy integration with a wide array of reading devices. This facilitates seamless system integration and enables remote control and management via a management computer.
- Automatic Reset Function: If a user does not pass through within a predetermined time after a valid card reading, the system automatically cancels their passage permission for that instance. Administrators can set this passage time limit.
- Smooth and Quiet Operation: The entire system is engineered for smooth operation with minimal noise.
Main Technical Parameters (Based on Single-Lane specifications; Dual-Lane may vary slightly, particularly in power and dimensions):
- Structure: The entire external plating of the product is made of 304 stainless steel, ensuring rust-proof, sturdy, and durable construction with simple operation.
- External Dimensions (Single-Lane): 1400mm (L) x 1400mm (W) x 2200mm (H). (Dual-Lane dimensions would be wider to accommodate the second lane, e.g., approximately 1400mm (L) x 2400-2800mm (W) x 2200mm (H) – exact dimensions for dual-lane to be confirmed).
- Passage Width (per lane): 600mm.
- Turnstile Direction: One-way or two-way configurable.
- Operating Environment: Suitable for both indoor and outdoor applications.
- Power Supply Voltage: AC220V ±10%, 50Hz.
- Drive (Single-Lane): 24V/100W. (Dual-Lane would likely have a higher power rating or dual drive units).
- Operating Temperature: -15℃ to 60℃.
- Relative Humidity: ≤90%, non-condensing.
- Input Interface: 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA.
- Communication Interface: RS485 electrical standard.
- Communication Distance: ≤1000 meters.
- Passage Speed (per lane): Approximately 30 people/minute (Normally Open Mode), 20 people/minute (Normally Closed Mode).
- Turnstile Opening/Closing Time: Approximately 2 seconds.
Standard Configuration Highlights (Based on Single-Lane):
- Framework: All stainless steel (304) construction.
- Fence Row Diameter: 38mm (rod length 550mm).
- Main Shaft: 89mm diameter, 2.0mm wall thickness.
- Core: Standard gate machine core.
- Control Unit: Gate Machine Electronic Control and Drive Unit (Main Control Board, Limit Switch).
- Power Failure Safety: Automatic two-way opening device for power failure (normally open or normally closed optional), crucial for fire protection.
- Power Restoration: Power-on bidirectional automatic locking device.
- Rotation: Unlocks and rotates 90 degrees.
- Optional Integration: Can be equipped with Face Recognition Poles for both directions.
LOTC’s Single-Lane and Dual-Lane Cross-Rotation Gates are the definitive choice for organizations seeking a sophisticated, durable, and highly secure pedestrian access control system. With LOTC, SECURITY STARTS HERE.
