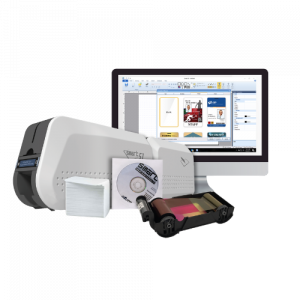

201539 – SMART-51L – Dual-Sided ID Card Printer & Laminator
SMART-51L is a high-performance dual-sided ID card printer with integrated lamination capabilities, designed for producing secure, long-lasting identification cards. Featuring patented Direct Lamination™ technology with an industry-leading 8-second heat-up time, it prints and laminates cards at speeds up to 22 seconds per card (YMCK with single lamination). The printer offers…
Introduction
The SMART-51L is a high-performance dual-sided ID card printer with integrated lamination capabilities, designed for professional ID card issuance requiring enhanced security and durability. As the next generation of IDP’s mid-range ID card printer platform, the SMART-51L inherits the most successful and proven elements of the SMART-50 series while introducing significant improvements in speed, quality, and reliability.
Key Features
The SMART-51L offers exceptional versatility and performance for organizations requiring secure, long-lasting identification cards. This advanced printer features both single and dual-sided printing with integrated lamination capabilities, allowing users to produce high-security ID cards with customizable security patch films in a single process.
One of the standout features of the SMART-51L is its patented Direct Lamination™ technology, which makes it the industry’s fastest “ready to print” laminator. With an impressive 8-second heat-up time, the SMART-51L is ready to print and laminate highly secured cards almost instantly, significantly improving productivity for batch card production.
The printer also features a real-time status LCD display, which provides users with immediate feedback on printing and lamination operations. The printer is equipped with two LED buttons for front operation, making it user-friendly and easy to operate despite its advanced capabilities.
Technical Specifications
Printing Capabilities
- Print Mode: Single or Dual-Sided
- Print Technology: Direct Dye-Sublimation / Thermal Transfer
- Print Area: Edge-to-Edge
- Resolution: 300dpi (Color & Mono), 600 & 1200dpi (Mono only)
- Print Speed:
- Monochrome: 5 seconds per card (720 cards per hour)
- YMCKO: Maximum 17 seconds per card (212 cards per hour)
- YMCKOK: Maximum 22 seconds per card (164 cards per hour)
Lamination Capabilities
- Lamination Mode: Single & Dual
- Film Types: Clear & Holographic (0.6mil, 1.0mil)
- Lamination Speed (Simultaneous):
- 22 seconds per card (YMCK, Single Lamination)
- 32 seconds per card (YMCKK, Single Lamination)
- Lamination Speed (One by One):
- 43 seconds per card (YMCK, Single Lamination)
- 53 seconds per card (YMCKK, Single Lamination)
- Heat-up Time: 8 seconds
Card Specifications
- Card Feeding: Automatic
- Card Size: ISO CR80 or ISO CR79 (Optional – Factory installed)
- Card Thickness: 0.38mm (15mil) to 1.0mm (40mil)
- Card Type: PVC, PET, Composite PVC
- Card Capacity:
- Input Hopper: 100 cards (200 cards with cover open)
- Output Hopper: Front – 40 cards / Rear – 100 cards (with optional rear-side stacker)
System Specifications
- Memory: 64MB RAM
- Interface: 2-Line LCD with LED Buttons
- Supported Platforms: Microsoft Windows 7/8/10, Mac OS, Linux
- Communication: USB (standard), Ethernet and WiFi (optional)
- Power Supply: Free Voltage (AC 100/220V, 50-60Hz)
- Power Consumption: 96W
- Operating Temperature: 15-35°C
- Operating Humidity: 35-70%
Physical Specifications
- Dimensions: 165mm (W) x 675mm (L) x 210mm (H) / 6.5″ (W) x 26.6″ (L) x 8.3″ (H)
- Weight: 8.8kg / 19.4lbs
Advanced Features
Security Features
The SMART-51L offers various security options to protect both the printer and the cards it produces:

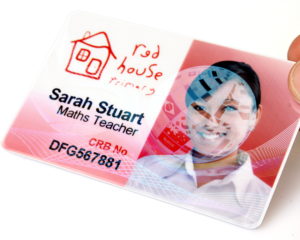

- Holographic lamination for visual security and card durability
- Optional physical lock for input hopper, ribbon, and film
- Kensington lock compatibility for securing the printer itself
- Low-cost security with UV printing capabilities
- Support for transparent cards
Encoding Options
The SMART-51L can be equipped with various encoding modules to enhance card functionality:
- Magnetic Stripe Encoding: ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II
- Contact Smart Card Encoding: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless Smart Card Encoding: ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092 (NFC), Felica
Upgradable Modules
The SMART-51L is designed with future expansion in mind, offering several upgradable modules:
- Ethernet connectivity for network printing
- WiFi capability for wireless printing
- Various encoding options for enhanced card functionality
Applications
The SMART-51L is ideal for a wide range of applications requiring secure, durable ID cards:
- Government identification cards
- Driver’s licenses
- Corporate ID badges with high security requirements
- University and school ID cards
- Healthcare staff IDs
- Access control cards for secure facilities
- Membership cards requiring extended durability
- National ID programs
Advantages Over Previous Models
The SMART-51L offers several improvements over the previous SMART-50 series:
- 10% faster print speed
- Enhanced print quality through optimized ribbon movement
- Metal frame body for improved durability and stability
- Patented Direct Lamination™ technology with 8-second heat-up time
- Larger card input capacity (up to 200 cards with cover open)
- More upgrade options for future expansion
Certifications
The SMART-51L meets international standards and has received certifications including CB, CE, FCC, KC, and CCC, ensuring compliance with global safety and electromagnetic compatibility requirements.
Conclusion
The SMART-51L dual-sided ID card printer with laminator represents an excellent solution for organizations requiring high-security, durable ID cards. With its advanced features, including patented Direct Lamination™ technology, holographic lamination capabilities, and robust construction, the SMART-51L delivers professional results while offering the flexibility to adapt to evolving identification needs. Its ability to print and laminate cards in a single process makes it an efficient and cost-effective solution for organizations with medium to high-volume card issuance requirements.
