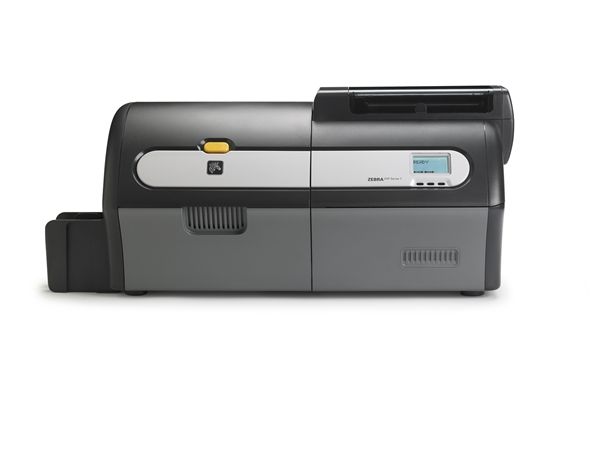

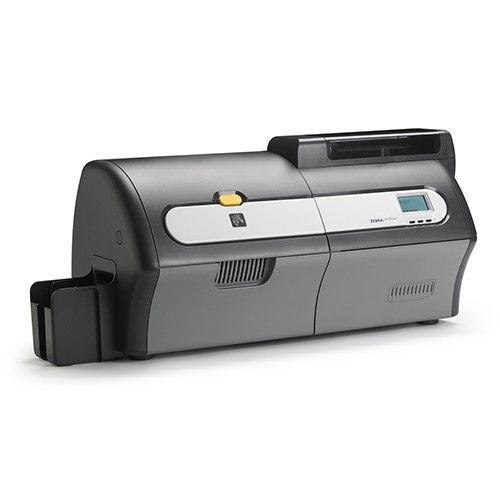

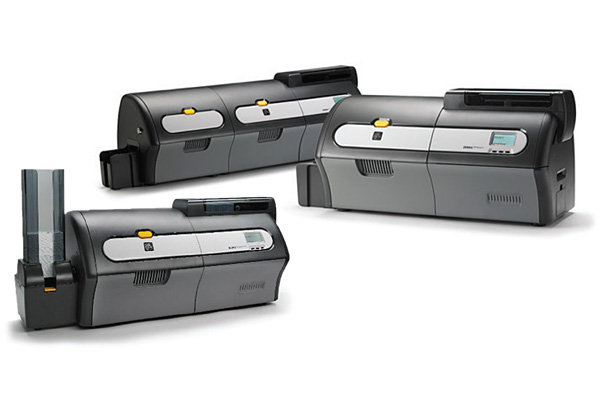

Zebra ZXP Series 7 Dual-Sided ID Card Printer (Z72-000C0000EM00)
Zebra ZXP Series 7 Dual-Sided ID Card Printer (Z72-000C0000EM00) is a high-performance card printing solution designed for high-volume applications requiring superior print quality. Featuring 300 dpi resolution and advanced dye-sublimation/thermal transfer printing technology, this printer delivers near-photographic image quality with precise color control and edge-to-edge printing on standard CR-80 media.…
Introduction
The Zebra ZXP Series 7 Dual-Sided ID Card Printer (Z72-000C0000EM00) represents a premium card printing solution designed for organizations with high-volume printing requirements and demanding quality standards. This professional-grade printer combines exceptional print quality, impressive speed, and robust reliability to deliver superior identification cards for a wide range of applications. Built to meet the needs of service bureaus, government agencies, educational institutions, and corporate environments, the ZXP Series 7 offers the perfect balance of performance, productivity, adaptability, and cost efficiency.
Design and Physical Characteristics
The ZXP Series 7 features an innovative and thoughtfully engineered design that prioritizes both functionality and ease of use. With dimensions of 12 inches (H) × 10.9 inches (L) × 27.5 inches (W) (306 mm H × 277 mm D × 699 mm W) for the printer-only configuration, it maintains a relatively compact footprint despite its industrial capabilities. The printer with laminator configuration measures 12 inches (H) × 10.9 inches (L) × 38 inches (W) (306 mm H × 277 mm D × 964 mm W), providing additional functionality while still being space-efficient.
Weighing 26.9 lbs (12.2 kg) for the printer-only model and 39.5 lbs (17.9 kg) for the printer with laminator, the ZXP Series 7 exhibits a robust construction that ensures durability and stability during operation. The printer’s exterior features a professional, modern design with a predominantly dark gray finish that fits well in various professional environments.
One of the most notable design features is the automatic card thickness adjustment mechanism, which eliminates the need for manual recalibration when switching between different card stocks. This, combined with color-coded guides and a clear 21-character × 6-line LCD control panel with configurable soft keys, makes the printer exceptionally user-friendly even for operators with minimal technical expertise.
The printer includes physical security features such as a Kensington® lock slot to prevent unauthorized removal of the device, while locking mechanisms protect both the printer and media from tampering. These physical security measures complement the software security features to provide comprehensive protection for the entire card production process.
Printing Technology and Performance
The ZXP Series 7 utilizes advanced color dye sublimation and monochrome thermal transfer printing technologies to produce exceptional quality cards. With a print resolution of 300 dpi (11.8 dots per mm), it delivers near-photographic print quality with precise color control and sharp detail reproduction. The printer supports edge-to-edge printing on standard CR-80 media, maximizing the printable area of each card.
Performance is a key strength of the ZXP Series 7, with impressive printing speeds across various printing modes:
- Monochrome single-sided: Up to 1,375 cards per hour
- Monochrome dual-sided: Up to 555 cards per hour
- Full-color YMCKO single-sided: Up to 300 cards per hour
- Full-color YMCKOK dual-sided: Up to 225 cards per hour
- Full-color YMCKO single-sided with lamination: Up to 270 cards per hour
These speeds are based on batch printing with USB connectivity and may vary depending on the computer configuration. The printer’s ability to process up to three jobs simultaneously (encoding, printing, and laminating) further enhances throughput and efficiency.
Card Handling and Media Capacity
The ZXP Series 7 is equipped with robust card handling capabilities designed for high-volume operations. The standard configuration includes:
- 200-card capacity feeder (30 mil)
- 15-card reject hopper (30 mil)
- 100-card output hopper (30 mil)
- Single-card feed capability for on-demand printing
The ZXP Series 7 Pro model offers enhanced capacity with a 250-card input capacity feeder and a 250 First-in, First-out mechanical output hopper, making it particularly suitable for large batch printing operations.
The printer supports standard CR-80 cards with thicknesses ranging from 10 to 50 mil, providing flexibility for various card types and applications. The automatic card thickness adjustment feature ensures consistent performance regardless of the card stock being used.
Media and Supplies
The ZXP Series 7 is designed to work with Zebra True Colours ix Series ribbons and Zebra True Secure i Series laminate, which are specifically engineered to optimize print quality and reduce cost-per-card. These high-capacity ribbons deliver more images per roll and feature an improved formulation for printing high-quality images at higher speeds.
Available ribbon options include:
- YMCKO (full-color with overlay)
- YMCKOK (full-color with overlay and black panel for back printing)
- Monochrome (black, white, red, blue, gold, silver, etc.)
The ribbons and laminates incorporate intelligent media technology that automatically detects and calibrates the printer, ensuring optimal performance and reducing waste. The laminate design dramatically reduces waste by eliminating carrier material, backings, and liners, while specially designed cartridges make laminate replacement simple and straightforward.
Connectivity and Interface
The ZXP Series 7 offers comprehensive connectivity options to integrate seamlessly into various IT environments:
- USB 2.0 (standard)
- Ethernet 10/100 (standard)
- 802.11b/g wireless (optional)
The USB interface supports plug-and-play printer identification for easy setup, while the Ethernet connection enables network printing in shared environments. The optional wireless connectivity provides flexibility for deployments where physical network connections are impractical.
Software and Driver Support
The ZXP Series 7 is supported by Microsoft Windows Certified drivers, ensuring compatibility with modern operating systems including:
- Windows 7 (32 and 64 bit)
- Windows Server 2008 (32 and 64 bit)
- Windows 8 (32 and 64 bit)
- Windows 8.1 (32 and 64 bit)
- Windows Server 2012 (64 bit)
- Windows 10 (32 and 64 bit)
For developers and system integrators, Zebra provides the ZMotif SDK (Software Development Kit) with sample code, making it easy to integrate advanced features or create custom print applications. The ZXP Toolbox offers advanced control over printer setup, driver configuration, and administrative functions, as well as diagnostic capabilities for troubleshooting.
Zebra’s CardStudio card design and issuance software complements the ZXP Series 7, providing an intuitive interface for creating sophisticated card designs. Whether producing simple monochrome cards or complex designs with MIFARE contactless encoding, security features, and dynamic data, CardStudio makes the process accessible even to users with limited technical expertise.
Optional Features and Encoding Capabilities
The ZXP Series 7 can be customized with various optional features to meet specific requirements:
- Single- or dual-sided printing
- Wasteless single- or dual-sided lamination
- UHF encoding
- 802.11b/g wireless connectivity
- Integrated barcode reader
- Zebra Duo-Print dual-sided printing upgrade kit
Encoding options include:
- Magnetic stripe encoder
- Contact smart card encoder
- Contactless smart card encoder
- UHF RFID encoder
These options allow organizations to create multi-functional cards that combine visual identification with various electronic credentials, enhancing security and functionality.
Environmental Specifications
The ZXP Series 7 is designed to operate reliably in a wide range of environments:
- Operating Temperature: 59°F to 95°F (15°C to 35°C)
- Operating Humidity: 20% to 80% non-condensing
- Storage Temperature: 23°F to 158°F (-5°C to 70°C)
- Storage Humidity: 10% to 90% non-condensing
Media storage recommendations:
- Temperature: 41°F to 86°F (5°C to 30°C)
- Humidity: 30% to 50% non-condensing
- Avoid direct sunlight
These specifications ensure consistent performance across various environmental conditions while preserving the quality of printed cards and supplies.
Warranty and Support
The ZXP Series 7 comes with a two-year limited warranty on both the printer and printhead, reflecting Zebra’s confidence in the product’s durability and reliability. This comprehensive warranty provides peace of mind for organizations making a significant investment in their card issuance infrastructure.
Applications
The Zebra ZXP Series 7 Dual-Sided ID Card Printer is particularly well-suited for the following applications:
Government and Public Sector
- National ID cards
- Driver’s licenses
- Voter registration cards
- Government employee badges
- Service access cards
Corporate
- Employee ID badges
- Access control cards
- Membership cards
- Loyalty cards
- Visitor management
Education
- Student and faculty ID cards
- Library cards
- Access control cards
- Payment cards
- Event credentials
Healthcare
- Staff identification
- Patient identification
- Access control
- Insurance cards
- Laboratory and pharmacy tracking
Service Bureaus
- High-volume card production
- Custom card printing services
- Membership and loyalty program cards
- Event credentials
Conclusion
The Zebra ZXP Series 7 Dual-Sided ID Card Printer (Z72-000C0000EM00) represents a premium solution for organizations with demanding card printing requirements. By combining near-photographic print quality, impressive speed, robust security features, and exceptional reliability, it delivers outstanding value despite its higher initial investment compared to entry-level printers.
The printer’s innovative design features, such as automatic card thickness adjustment and color-coded guides, make it accessible to users of all technical levels, while its high-capacity media options and simultaneous processing capabilities ensure efficient operation in high-volume environments.
With its comprehensive connectivity options, flexible encoding capabilities, and optional lamination, the ZXP Series 7 can be tailored to meet the specific needs of various applications, from simple ID badges to sophisticated multi-functional cards with advanced security features. For organizations that prioritize quality, security, and reliability in their card issuance programs, the Zebra ZXP Series 7 represents an excellent lo
