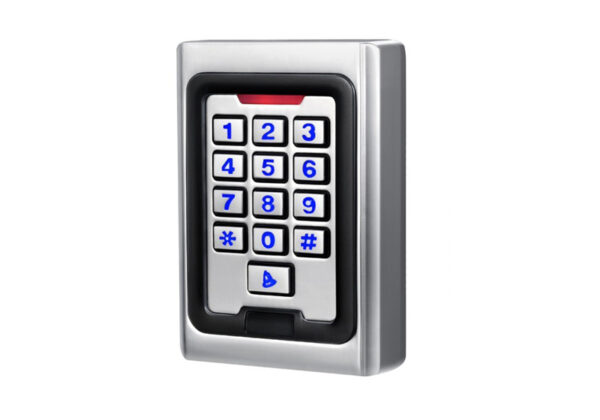

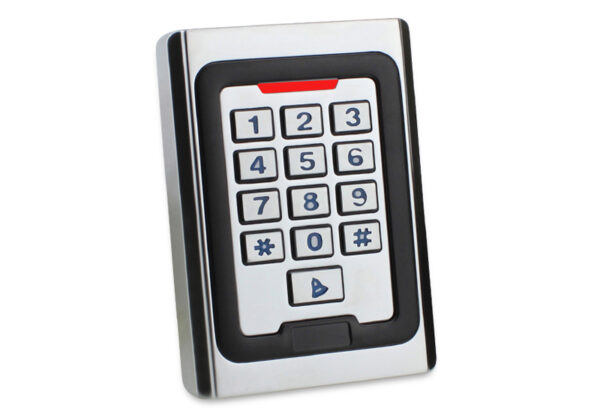

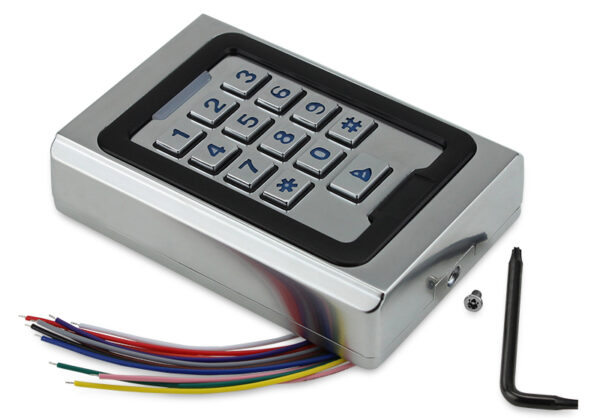

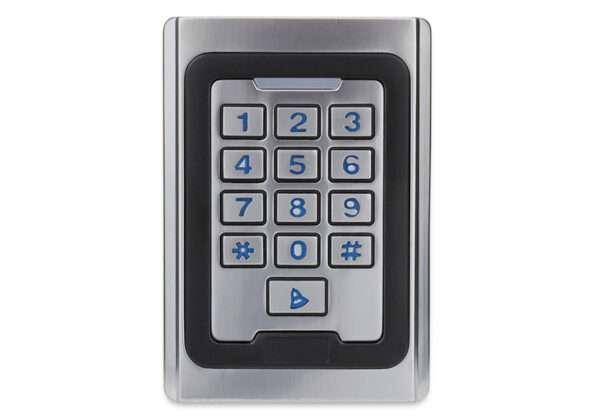

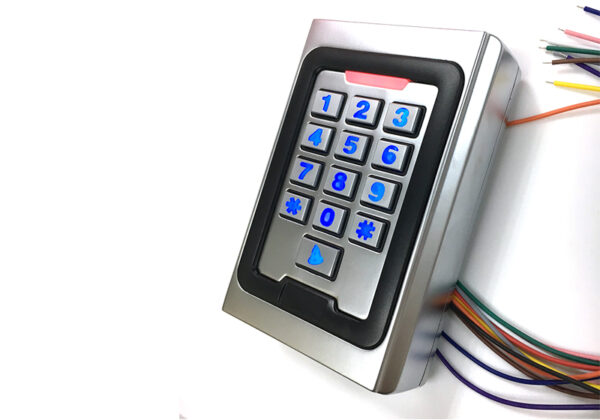

LOTC K5EM Metal RFID Access Controller
LOTC K5EM is a durable metal RFID access controller with integrated keypad functionality, supporting both EM and MF card types with a 2,000-user capacity. Featuring a sleek waterproof design with dimensions of 110×75×25mm, this versatile controller operates on DC12V power and offers 5-8cm card read distance. Designed by LOTC, where…
Product Overview
The LOTC K5EM is a premium metal RFID access controller with integrated keypad functionality, designed for secure access management applications. Developed by LOTC, a brand where “SECURITY STARTS HERE,” this advanced access control solution combines the convenience of contactless RFID technology with the added security of keypad verification. The K5EM features a durable metal construction with a sleek, professional design, making it suitable for both indoor and outdoor installations in various environments.
Technical Specifications
- Brand: LOTC (Security Starts Here)
- Model: K5EM
- Type: Metal RFID Access Controller with Keypad
- Card Type: EM or MF (Mifare)
- User Capacity: 2,000 cards/users
- Working Voltage: DC12V ±10%
- Card Read Distance: 5~8cm
- Lock Output: ≤3A
- Alarm Output: ≤20A
- Output Short Circuit Protection Time: ≤100μS
- Static Electricity: ≤30mA
- Environment Humidity: 10%~90%
- Ambient Temperature: -45°C~60°C
- Door Opening Time: 0~99s (Adjustable)
- Dimensions: 110×75×25mm (L×W×D)
Advanced Features
The LOTC K5EM incorporates several advanced features that set it apart from conventional access controllers:
- Dual Authentication Options: Supports card-only, PIN-only, or card+PIN verification modes for flexible security levels
- Multi-Card Format Support: Compatible with both EM (125KHz) and MF (13.56MHz) card technologies
- High Capacity Database: Stores up to 2,000 authorized users with unique access privileges
- Durable Metal Construction: Vandal-resistant housing ensures longevity in high-traffic areas
- Wide Operating Temperature Range: Functions reliably from -45°C to 60°C, suitable for extreme environments
- Adjustable Door Release Time: Customizable door opening duration from 0 to 99 seconds
- Short Circuit Protection: Built-in protection mechanism activates within 100μS to prevent damage
- Low Power Consumption: Efficient operation with minimal static electricity (≤30mA)
- Backlit Keypad: Illuminated keys for easy operation in low-light conditions
- Status Indicators: Visual and audible feedback for successful/unsuccessful access attempts
Applications
The LOTC K5EM Metal RFID Access Controller is ideal for a wide range of applications:
- Commercial Buildings: Office complexes, business centers, and corporate facilities
- Residential Properties: Apartment buildings, condominiums, and gated communities
- Educational Institutions: Schools, colleges, and universities
- Healthcare Facilities: Hospitals, clinics, and medical centers
- Retail Environments: Stores, shopping centers, and warehouses
- Hospitality Industry: Hotels, resorts, and guest accommodations
- Government Buildings: Administrative offices and public facilities
- Industrial Settings: Manufacturing plants and factory access points
Installation and Integration
The LOTC K5EM features a standard mounting design for straightforward installation. Its compact dimensions (110×75×25mm) allow for flexible placement options, including mounting on door frames, walls, or other surfaces. The controller can be integrated with:
- Electric Locks: Compatible with various electromagnetic and electric strike locks
- Exit Buttons: Supports standard request-to-exit devices
- Alarm Systems: Can be connected to existing security alarm infrastructure
- Power Supply Systems: Works with standard 12V DC power supplies (±10% tolerance)
- Access Control Software: Can be incorporated into broader access management systems
Benefits
- Enhanced Security: Dual-factor authentication options provide layered security
- User-Friendly Operation: Intuitive interface with clear visual and audible feedback
- Versatile Installation: Suitable for both indoor and outdoor environments
- Durable Construction: Metal housing ensures longevity and vandal resistance
- Reliable Performance: Consistent operation across extreme temperature ranges
- Flexible Configuration: Adjustable settings to accommodate various security requirements
- High Capacity: Supports large user databases for busy facilities
- Professional Appearance: Sleek, modern design complements various architectural styles
- Cost-Effective Solution: Combines multiple access technologies in a single device
Brand Value
As a product from LOTC, where “SECURITY STARTS HERE,” the K5EM represents the brand’s commitment to innovative security solutions that combine robust performance with practical functionality. LOTC’s focus on quality, reliability, and user experience is evident in every aspect of the K5EM’s design and performance, making it a preferred choice for security professionals and facility managers worldwide.
Conclusion
The LOTC K5EM Metal RFID Access Controller exemplifies the perfect balance of security, durability, and functionality in modern access control systems. With its dual authentication capabilities, support for multiple card formats, and extensive user capacity, this premium LOTC product delivers comprehensive security for various access points. The combination of advanced technology, metal construction, and the trusted LOTC brand makes the K5EM an ideal choice for organizations seeking reliable, versatile, and user-friendly access control solutions for their facilities.
