LOTC EL-1200SD Single Door Electromagnetic Lock
LOTC EL-1200SD is a high-security single door electromagnetic lock with an exceptional 500KG (1200Lbs) holding force for maximum security applications. Featuring an anodized aluminum housing with LED door sensor indicators, this robust lock operates on adjustable DC12V or DC24V power supply. Designed by LOTC, where “SECURITY STARTS HERE,” the EL-1200SD…
Product Overview
The LOTC EL-1200SD is a premium single door electromagnetic lock designed for high-security applications requiring superior holding force. Developed by LOTC, a brand where “SECURITY STARTS HERE,” this advanced locking solution provides exceptional 500KG holding force for single door installations. The EL-1200SD features sophisticated monitoring capabilities with LED door sensors, making it an ideal choice for high-security facilities, government buildings, and other locations requiring maximum security measures.
Technical Specifications
- Brand: LOTC (Security Starts Here)
- Model: EL-1200SD
- Type: Single Door Electromagnetic Lock
- Holding Force: 500kg (1200Lbs)
- Lock Size: 265L×72W×40H(mm)
- Armature Plate: 185L×60W×13H(mm)
- Voltage: DC12V or DC24V (adjustable)
- Current Draw: 12V/420mA, 24V/210mA
- Signal Output: Dry Contact, Max Rating of Contact Current 3A
- Surface Temperature: ≤20°C
- Operating Temperature: -10°C ~ 55°C (14°F-131°F)
- Suitable Humidity: 0~90% (non-condensing)
- Finishes for Shell: Anodized aluminum surface texture processing
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc
- Weight: 4.5kg
- Standard Packing: 4pcs

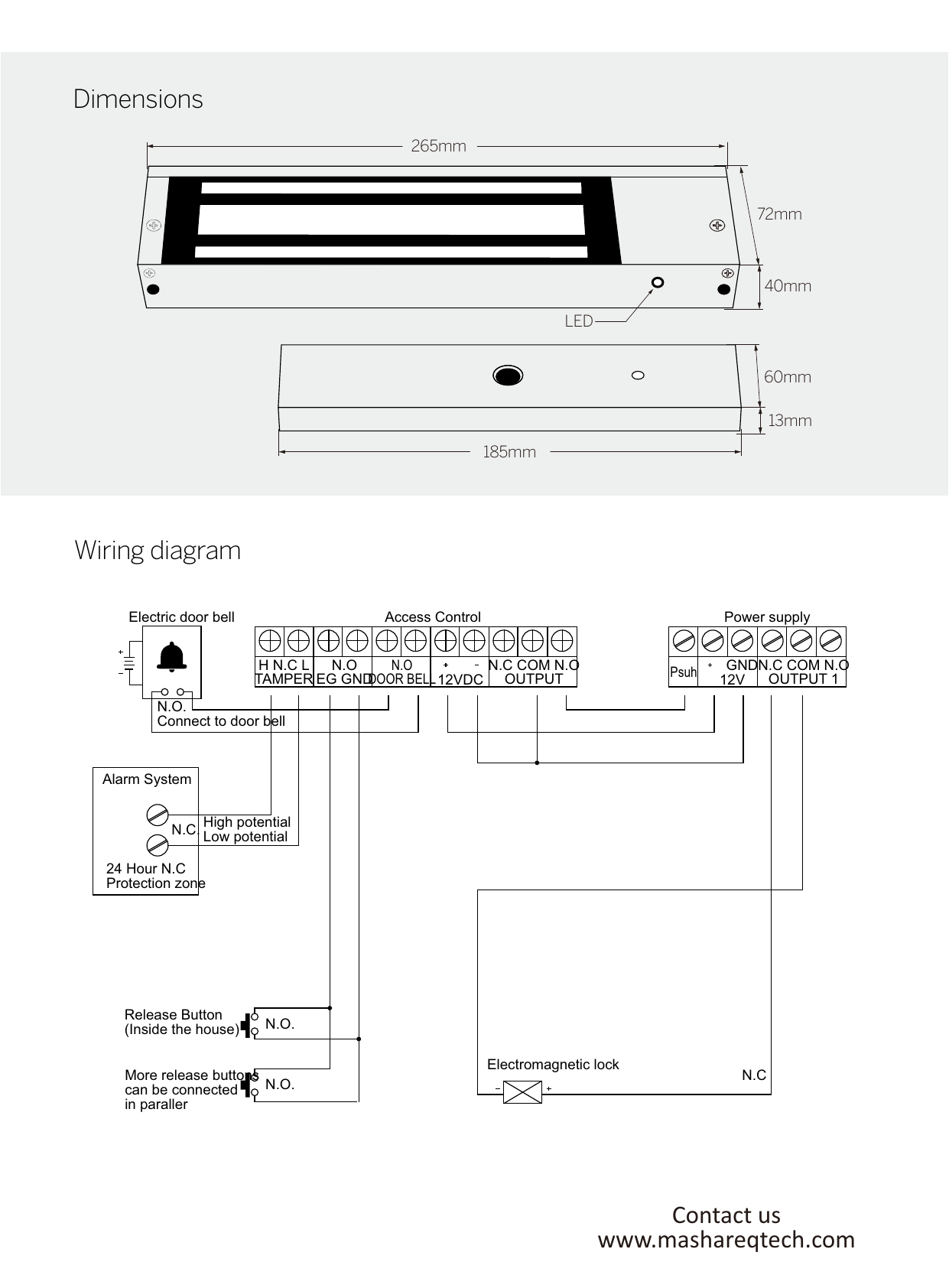

Dimensions and Wiring
Advanced Features
The LOTC EL-1200SD incorporates several advanced features that set it apart from conventional electromagnetic locks:
- Superior Holding Force: 500kg (1200lbs) holding force for maximum security in critical installations
- LED Door Sensor: Visual indicators showing door status for enhanced monitoring
- Adjustable Voltage: Compatible with both 12V and 24V systems for installation flexibility
- Signal Output: Dry contact output for integration with access control and alarm systems
- Anodized Aluminum Housing: Durable construction with aesthetic finish for long-term reliability
- Low Power Consumption: Efficient operation with minimal heat generation (surface temperature ≤20°C)
- Weather Resistant: Suitable for varied environmental conditions with wide operating temperature range
- Robust Design: Larger dimensions (265mm length) and reinforced construction for enhanced durability
Applications
The LOTC EL-1200SD Single Door Electromagnetic Lock is ideal for high-security applications:
- Government Facilities: Military installations, embassies, and secure government buildings
- Financial Institutions: Bank vaults, secure areas, and high-value storage rooms
- Critical Infrastructure: Power plants, water treatment facilities, and telecommunications centers
- Research Facilities: Laboratories, R&D centers, and sensitive research environments
- Data Centers: Server rooms and IT infrastructure requiring maximum security
- Correctional Facilities: Prisons, detention centers, and secure holding areas
- Pharmaceutical Facilities: Drug storage areas and manufacturing facilities
- High-Value Retail: Jewelry stores, art galleries, and luxury goods retailers
Installation and Integration
The LOTC EL-1200SD features a standard mounting design for straightforward installation despite its enhanced holding force. The comprehensive wiring diagram provided in the documentation enables seamless integration with:
- Access Control Systems: Compatible with various electronic access control platforms
- Alarm Systems: Can be connected to security alarm systems for enhanced monitoring
- Electric Door Bells: Integrates with door bell systems for notification
- Release Buttons: Supports multiple release buttons connected in parallel
- Power Supply Systems: Flexible power requirements (12V or 24V)
The lock’s dimensions (265L×72W×40H mm) and armature plate size (185L×60W×13H mm) are designed for standard single door installations requiring maximum security, making it compatible with most commercial and high-security door systems.
Benefits
- Maximum Security: Industry-leading 500KG holding force ensures doors remain securely locked even under extreme force
- Reliable Monitoring: LED indicators provide visual confirmation of door status
- Versatile Application: Suitable for various door types and high-security requirements
- Durable Construction: High-quality materials ensure long-term performance in demanding environments
- Easy Integration: Compatible with standard access control and security systems
- Professional Appearance: Sleek design with anodized aluminum finish complements modern architectural styles
- Efficient Operation: Optimized power consumption despite higher holding force
- Complete Package: Standard packing includes 4 units for multiple installation needs
Brand Value
As a product from LOTC, where “SECURITY STARTS HERE,” the EL-1200SD represents the brand’s commitment to innovative security solutions that combine superior strength with practical functionality. LOTC’s focus on quality, reliability, and user experience is evident in every aspect of the EL-1200SD’s design and performance, making it a preferred choice for security professionals and facility managers worldwide who require maximum security without compromise.
Conclusion
The LOTC EL-1200SD Single Door Electromagnetic Lock exemplifies the perfect balance of strength and sophistication in modern access control components. With its industry-leading 500KG holding force, LED status indicators, and versatile integration options, this premium LOTC product delivers exceptional security for high-risk single door installations. The combination of advanced technology, robust construction, and the trusted LOTC brand makes the EL-1200SD an ideal choice for security-conscious installations where maximum holding force, reliability, and performance are non-negotiable requirements.
