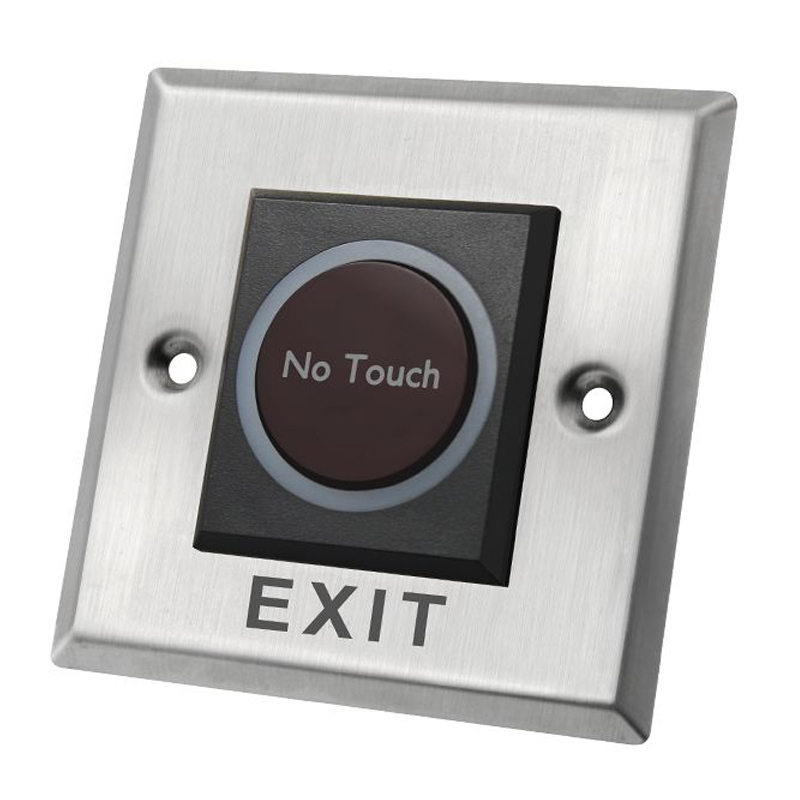

LOTC EB-17 No Touch Exit Button
LOTC EB-17 is a premium No Touch Exit Button featuring contactless activation technology with a detection range of 0.1-10cm. Housed in an elegant stainless steel panel with illuminated sensor area, this exit button operates on 12V-24V power supply and offers multiple output contacts (NO/NC/COM). Designed by LOTC, where “SECURITY STARTS…
Product Overview
The LOTC EB-17 is an advanced contactless exit button designed for modern access control systems. Developed by LOTC, a brand where “SECURITY STARTS HERE,” this premium device represents the cutting edge of exit button technology. The EB-17 features a sleek, professional design with an illuminated sensor area that provides visual feedback to users while enhancing the aesthetic appeal of any installation environment.
Technical Specifications
- Brand: LOTC (Security Starts Here)
- Model: EB-17
- Type: No Touch Exit Button
- Structure: Stainless Steel Panel with Steel Button
- Dimensions: 86mm × 86mm (square design)
- Weight: 0.25kg
- Detection Range: 0.1-10cm adjustable sensitivity
- Power Supply: 12V-24V DC

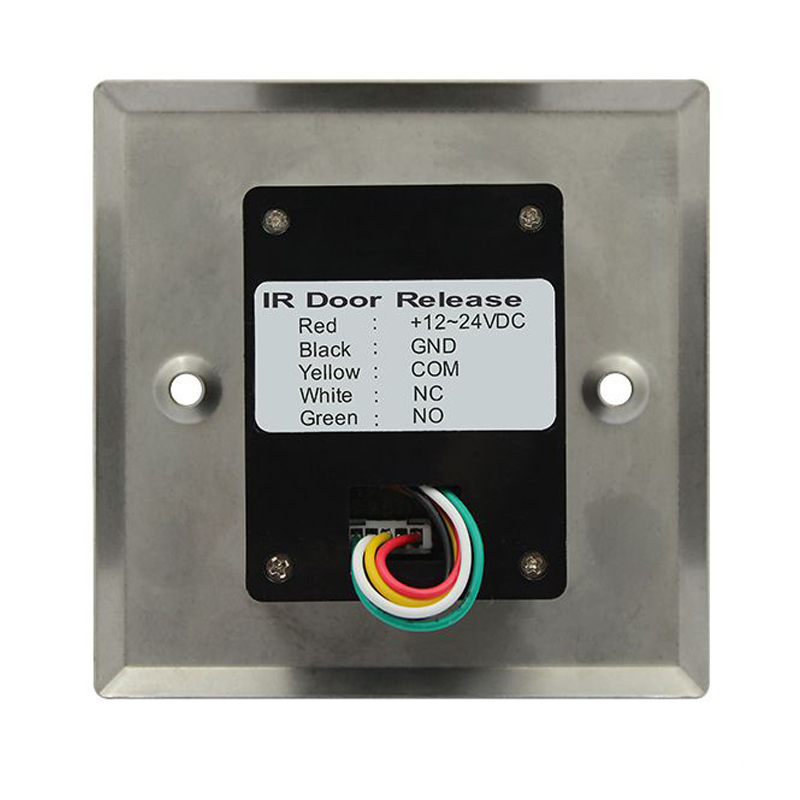

- Output Contacts: Multiple options (NO/NC/COM)
- Current Rating: 3A, 36VDC Max
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Mechanical Life: 1,000,000 operations tested
- Installation Compatibility: Suitable for hollow doors
Advanced Features
The LOTC EB-17 incorporates several advanced features that set it apart from conventional exit buttons:
- Contactless Operation: Eliminates physical contact, reducing wear and tear while promoting hygiene in high-traffic areas

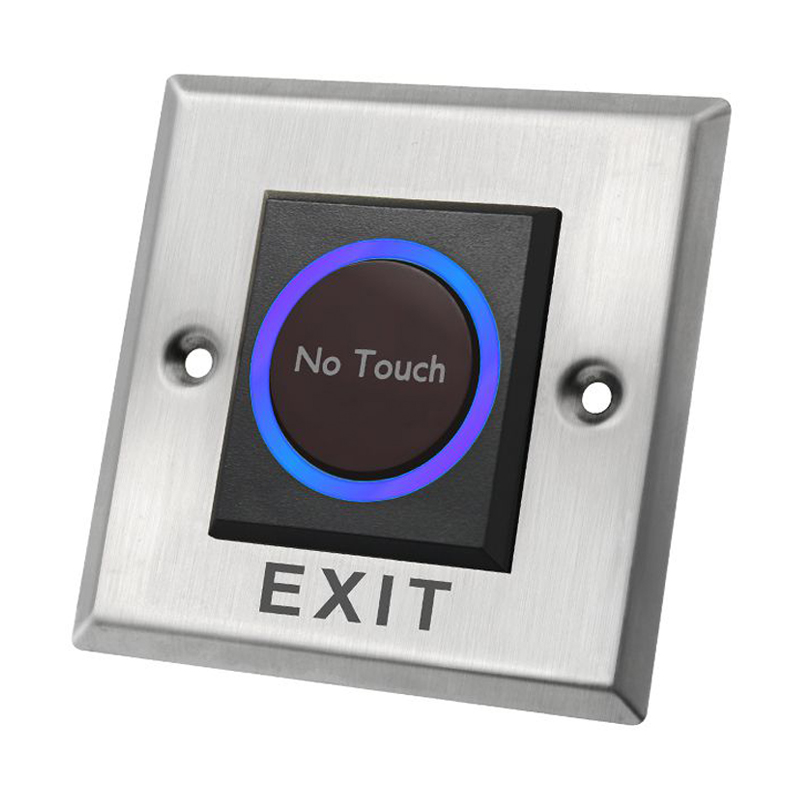

- Illuminated Sensor Area: Blue LED ring provides clear visual indication of the sensor location, even in low-light conditions
- Multiple Output Options: Versatile NO/NC/COM connections for compatibility with various access control systems
- Adjustable Detection Range: Customizable sensitivity from 0.1cm to 10cm to suit specific installation requirements
- Durable Construction: Premium stainless steel panel ensures longevity and resistance to vandalism
- Extended Mechanical Life: Tested for 1,000,000 operations, ensuring reliable long-term performance
- Wide Operating Temperature Range: Functions reliably in diverse environmental conditions
Applications
The LOTC EB-17 No Touch Exit Button is ideal for a wide range of applications:
- Commercial Buildings: Offices, retail spaces, and business centers
- Healthcare Facilities: Hospitals, clinics, and laboratories where hygiene is paramount
- Educational Institutions: Schools, colleges, and universities
- Hospitality Industry: Hotels, restaurants, and entertainment venues
- Government Facilities: Administrative buildings and secure installations
- Industrial Environments: Manufacturing plants and warehouses
- Residential Complexes: Apartment buildings and gated communities
Installation and Integration
The LOTC EB-17 features a standard 86mm × 86mm form factor, making it compatible with most standard electrical boxes. Its versatile output options (NO/NC/COM) ensure seamless integration with virtually any access control system. The device is particularly suitable for hollow door installations and can be easily incorporated into both new constructions and retrofit projects.
Benefits
- Enhanced Hygiene: Contactless operation eliminates the need to touch surfaces, reducing the spread of germs and viruses
- Improved User Experience: Intuitive operation with visual feedback for user convenience
- Increased Reliability: Extended mechanical life and robust construction ensure consistent performance
- Aesthetic Appeal: Sleek, modern design complements contemporary architectural styles
- Versatile Compatibility: Works with a wide range of access control systems and door types
- Reduced Maintenance: No moving parts to wear out, minimizing service requirements
- Professional Appearance: Premium LOTC branding and quality construction enhance the perceived value of any installation
Brand Value
As a product from LOTC, where “SECURITY STARTS HERE,” the EB-17 represents the brand’s commitment to innovative security solutions that combine cutting-edge technology with practical functionality. LOTC’s focus on quality, reliability, and user experience is evident in every aspect of the EB-17’s design and performance, making it a preferred choice for security professionals and facility managers worldwide.
Conclusion
The LOTC EB-17 No Touch Exit Button exemplifies the perfect balance of form and function in modern access control components. With its contactless operation, durable construction, and versatile integration options, this premium LOTC product delivers exceptional value for a wide range of applications. The combination of advanced technology, elegant design, and the trusted LOTC brand makes the EB-17 an ideal choice for security-conscious installations where reliability, hygiene, and aesthetics are paramount considerations.
